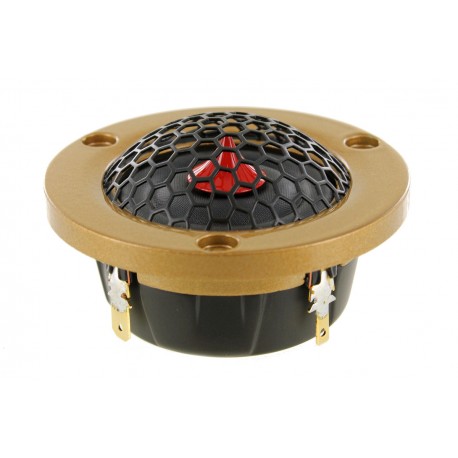

R3004/602005 Scan Speak CAR GOLD Series View larger

R3004/602005 Scan Speak CAR GOLD Series

New product

Scan Speak CAR GOLD Series R3004-6020-05 Tweeter Ringradiator dome 26mm Fs 630Hz, Sensitivity 90db  -- PRICE FOR UNIT --

DOWNLOAD DATASHEET for graphic, measures, dimensions

More details


--- Available for Sale in 3-7 Days ---
18-5-18 -5% ex +6% del 22-2-18

211,47 € tax incl.

  • TWEETER R3004/602005
    The GOLD SERIES are specially selected units from Scan-Speak’s well-known home
    audio speakers. Which have been upgraded and optimized for automotive use. This
    series enables audiophiles to experience in their vehicle the - TRUE TO LIVE - that
    they enjoy from their high-end home audio system.

    KEY FEATURES:
    · 1" Ring Dome Diaphragm
    · High Power Patented SD-2 magnet system
    · Non Resonant Alu Rear Chamber
    · Patented Phase Plug Design
    · Sound Transparant Protective Grill
    · Die Cast Housing & Face Plate
    T-S Parameters
    Resonance frequency [fs] 630 Hz
    Mechanical Q factor [Qms] 3.42
    Electrical Q factor [Qes] 1.15
    Total Q factor [Qts] 0.86
    Force factor [Bl] 2.4 Tm
    Mechanical resistance [Rms] 0.68 kg/s
    Moving mass [Mms] 0.59 g
    Compliance [Cms] 0.11 mm/N
    Effective diaph. diameter [D] 27 mm
    Effective piston area [Sd] 5.6 cm²
    Equivalent volume [Vas] 0.01 l
    Sensitivity (2.83V/1m) 90 dB
    Ratio Bl/√Re 1.39 N/√W
    Ratio fs/Qts 733 Hz
    Notes:
    IEC specs. refer to IEC 60268-5 third edition.
    All Scan-Speak products are RoHS compliant.
    Data are subject to change without notice.
    Datasheet updated: March 8, 2017.
    Electrical Data
    Nominal impedance [Zn] 4 Ω
    Minimum impedance [Zmin] 3.8 Ω
    Maximum impedance [Zo] 15.0 Ω
    DC resistance [Re] 3 Ω
    Voice coil inductance [Le] 0.02 mH
    Power Handling
    100h RMS noise test (IEC 17.1)* 50 W
    Long-term max power (IEC 17.3)* 130 W
    *Filter: 2. order HP Butterworth, 2.5 kHz
    Voice Coil & Magnet Data
    Voice coil diameter 26 mm
    Voice coil height 2.0 mm
    Voice coil layers 2
    Height of gap 2.5 mm
    Linear excursion ± 0.25 mm
    Max mech. excursion ± 1.6 mm
    Unit weight 0.15 kg

  • note --- Available for Sale in 3-7 Days ---
    dati 18-5-18 -5% ex +6% del 22-2-18
