SMPS400A180 Hypex Alimentatore 2x46V 400W

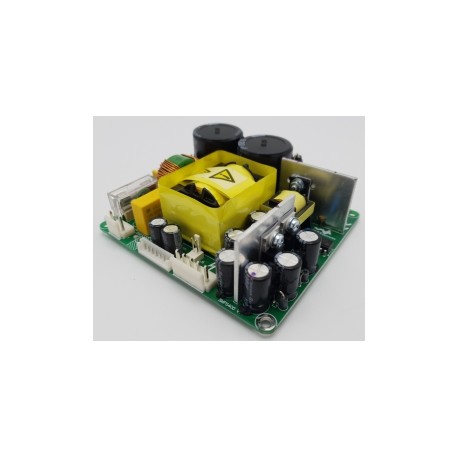

The SMPS400 Power Supply is a 400W high efficiency switch mode power supply specially designed to be used in combination with our range of UcD amplifier modules.

APPLICATIONS:

• Supply for single or multiple amplifiers of the UcD range
• Active loudspeakers

HIGHLIGHTS:

• High efficiency
• Selectable input voltage range
• Extremely small form factor
• Low EMI

GENERAL FEATURES:

• Advanced over current protection
• Remote controlled operation
• Low weight
• Compact
• Fits in 1HE (additional insulation required)
• Fixed output voltage (3 versions available)

 ELECTRICAL FEATURES:

• High Line Input Voltage: 200-240Vac +/-10%
• Low Line Input Voltage: 100-120Vac +/-10%
• Output Voltage: 2x46Vdc
• Max. Output power: 400W @20Hz
• Switching Frequency: 100kHz

MECHANICAL FEATURES:

• Weight: 750g
• Dimensions: 165mm x 105mm x 55mm

CONTENTS OF PACKAGING:

• SMPS400A180 with mounted spacers
• Manual

RECOMMENDED ADDITIONAL PARTS:

• Cable set SMPS400

RECOMMENDED AMPLIFIER COMBINATIONS:

• UcD180HG
• UcD180HG with HxR
