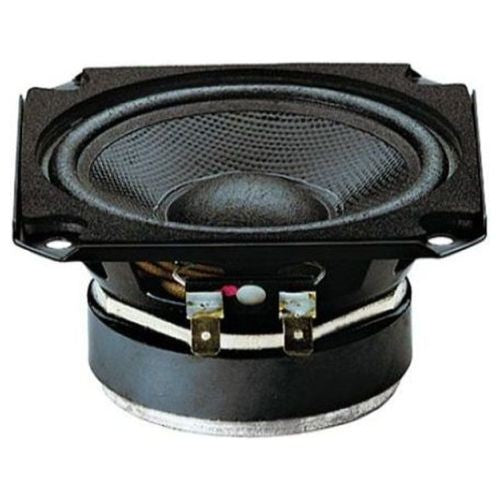

HM100 Ciare

€29.64
VAT included
In Stock

CIARE HM100 Cone Midrange. Fs 160hz. 88db

sviluppato e prodotto in Italia clicca dettagli prodotto per info specifiche / click on details for further infos

Quantity

General Specifications

Musical power (W): 150
Nominal power AES (W) 60
Nominal diameter (''/mm) 4''-100mm
Nominal impedance (Ω) 8
Voice coil diameter (mm): 25
Sensitivity 1W/1m (dB) 88
Spare part code N/A

Thiele Small Parameters

Note
Re 6,6
Fs 160
Qms 2,42
Qes 0,98
Qts 0,7
Mms 4,45
Cms 0,3
D 81
Vas 1,11
BxL 5,09
Linear Mathematical Xmax 0,9
n 0,28
Le (1kHz) 0,3

Materials

Basket Type Acciaio
Magnet Type Ferrite
Cone Material Cellulosa smorzata
Suspension Material Tela trattata
Spider Material
Former material Alluminio
Winding material
Connector type
Cone shape
Gap height 5

Applications

Applications Midrange
Recommended Loading Cassa chiusa
Loading Volume 2 litri
Tuning Frequency N/A
Frequency range 150-8000 Hz

Dimension and weight

Overall diameter 102 x 102 mm
Total depth 49 mm
Flange thickness 6 mm
Front mount baffle cutout diameter 91 mm
N. of mounting holes 4
Mounting holes diameter (mm) 5,5 mm
Bolt circle diameter 116 mm
Gross weight 0,69 kg
