R3004/602006 Scan Speak CAR Silver Series

R3004/602006 Scan Speak CAR Silver Series

€159.02
In Stock
Scan Speak

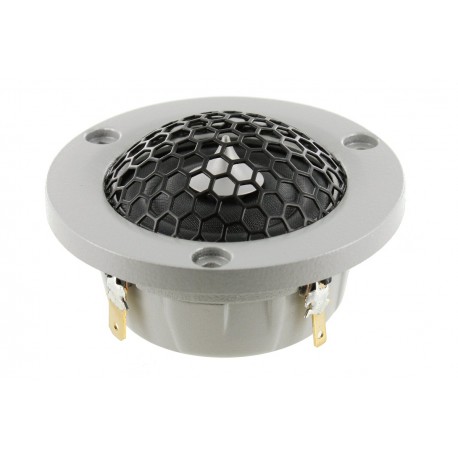

Scan Speak CAR Silver Series R3004-6020-06 Tweeter Ringradiator dome 26mm Fs 625Hz, Sensitivity 87.5db -- PRICE FOR UNIT --

DOWNLOAD DATASHEET for graphic, measures, dimensions

Quantity

TWEETER R3004/602006
Our SILVER SERIES are specially selected units from Scan-Speak’s well-known home
audio speakers. Which have been optimized for automotive use. This series enables
audiophiles to experience in their vehicle the - TRUE TO LIVE - that they enjoy from
their high-end home audio system.

KEY FEATURES:
· 1" Ring Dome Diaphragm
· Patented Symmetrical Drive (SD-2) motor
· Non Resonant Alu Rear Chamber
· Patented Phase Plug Design
· Sound Transparant Protective Grill
· Die Cast Housing & Face Plate
T-S Parameters
Resonance frequency [fs] 625 Hz
Mechanical Q factor [Qms] 5.73
Electrical Q factor [Qes] 1.43
Total Q factor [Qts] 1.14
Force factor [Bl] 1.7 Tm
Mechanical resistance [Rms] 0.24 kg/s
Moving mass [Mms] 0.35 g
Compliance [Cms] 0.19 mm/N
Effective diaph. diameter [D] 27 mm
Effective piston area [Sd] 5.6 cm²
Equivalent volume [Vas] 0.01 l
Sensitivity (2.83V/1m) 87.5 dB
Ratio Bl/√Re 0.98 N/√W
Ratio fs/Qts 547 Hz
Notes:
IEC specs. refer to IEC 60268-5 third edition.
All Scan-Speak products are RoHS compliant.
Data are subject to change without notice.
Datasheet updated: March 15, 2016.
Electrical Data
Nominal impedance [Zn] 4 Ω
Minimum impedance [Zmin] 3.8 Ω
Maximum impedance [Zo] 15.0 Ω
DC resistance [Re] 3 Ω
Voice coil inductance [Le] 0.02 mH
Power Handling
100h RMS noise test (IEC 17.1)* 40 W
Long-term max power (IEC 17.3)* 100 W
*Filter: 2. order HP Butterworth, 2.5 kHz
Voice Coil & Magnet Data
Voice coil diameter 26 mm
Voice coil height 2.1 mm
Voice coil layers 2
Height of gap 2.5 mm
Linear excursion ± 0.2 mm
Max mech. excursion ± 1.6 mm
Unit weight 0.15 kg

Scan Speak

Data sheet

note
--- Available for Sale in 3-7 Days ---
