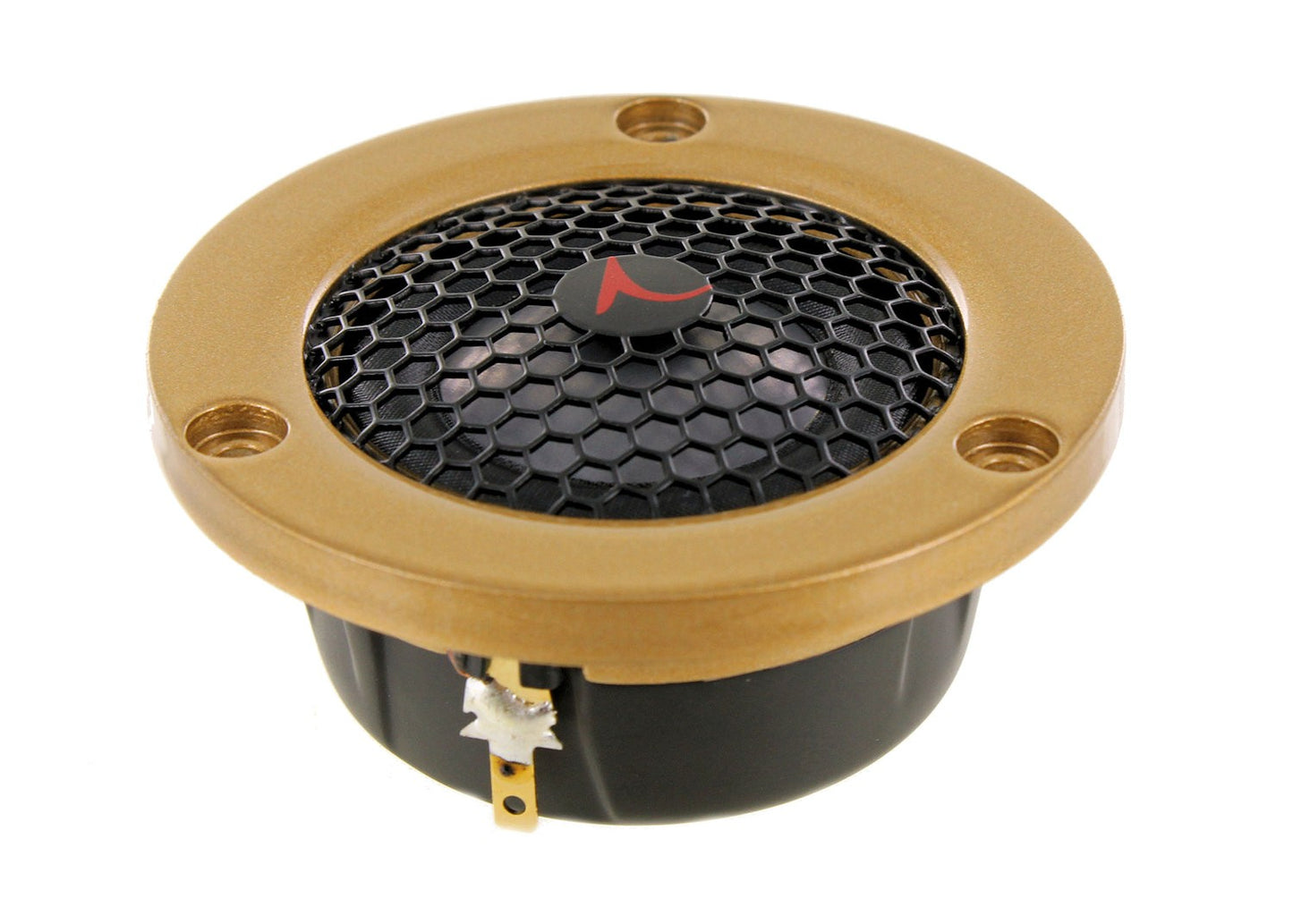

D3004-6020-05 Scan Speak CAR GOLD Series

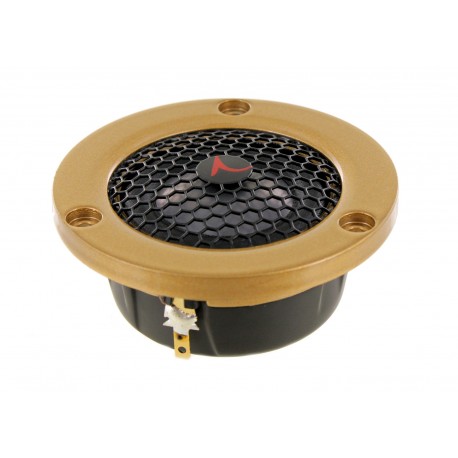

D3004-6040-05 Beryllium Scan Speak CAR GOLD Series

€289.34
In Stock
Scan Speak

Scan Speak CAR GOLD Series D3004-6020-05 Tweeter BERYLLIUM DOME 26mm Fs 715Hz, Sensitivity 92db -- PRICE FOR UNIT --

DOWNLOAD DATASHEET for graphic, measures, dimensions

Quantity

TWEETER D3004/604005
The GOLD SERIES are specially selected units from Scan-Speak’s well-known home
audio speakers. Which have been upgraded and optimized for automotive use. This
series enables audiophiles to experience in their vehicle the - TRUE TO LIVE - that
they enjoy from their high-end home audio system.

KEY FEATURES:
· 1" Beryllium Diaphragm (99% pure Be)
· High Power Patented SD-2 magnet system
· Die Cast Housing & Face Plate
· Large Roll Surround f. wide dispersion
· Compact Non Resonant Alu Rear Champer
· Sound Transparant Protective Grill
T-S Parameters
Resonance frequency [fs] 715 Hz
Mechanical Q factor [Qms] 2.25
Electrical Q factor [Qes] 1.00
Total Q factor [Qts] 0.69
Force factor [Bl] 2.4 Tm
Mechanical resistance [Rms] 0.89 kg/s
Moving mass [Mms] 0.35 g
Compliance [Cms] 0.11 mm/N
Effective diaph. diameter [D] 30 mm
Effective piston area [Sd] 7 cm²
Equivalent volume [Vas] 0.01 l
Sensitivity (2.83V/1m) 92.0 dB
Ratio Bl/√Re 1.43 N/√W
Ratio fs/Qts 1036 Hz
Notes:
IEC specs. refer to IEC 60268-5 third edition.
All Scan-Speak products are RoHS compliant.
Data are subject to change without notice.
Datasheet updated: March 8, 2017.
Electrical Data
Nominal impedance [Zn] 4 Ω
Minimum impedance [Zmin] 3.6 Ω
Maximum impedance [Zo] 10.9 Ω
DC resistance [Re] 2.9 Ω
Voice coil inductance [Le] 0.03 mH
Power Handling
100h RMS noise test (IEC 17.1)* 50 W
Long-term max power (IEC 17.3)* 100 W
*Filter: 2. order HP Butterworth, 2,5kHz
Voice Coil & Magnet Data
Voice coil diameter 26 mm
Voice coil height 2.0 mm
Voice coil layers 2
Height of gap 2.5 mm
Linear excursion ± 0.25 mm
Max mech. excursion ± 1.6 mm
Unit weight 0.15 kg
N.C.

Scan Speak

Data sheet

note
--- Available for Sale in 3-7 Days ---
