T29D001 Diamond (E0100-04) Seas PAIR

6.773,00 €
Tasse incluse Tempi di consegna su richiesta
Tempi di consegna dai 4 ai 7 giorni
Seas

SEAS EXCEL Tweeter T29D001 (E0100-04) Cupola da 26mm in diamante da, sistema magnetico Hexadym con sei piastre in neodimio, camera interna smorzata e antirisonante, Fs 510Hz -- PREZZO PER COPPIA

Quantità

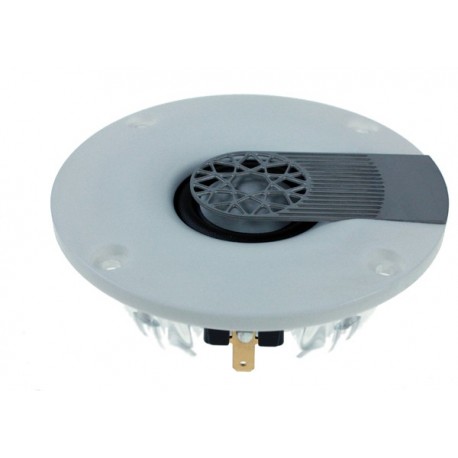

The T29D001, “White Diamond” is a 26mm pure Diamond dome tweeter with a
patented Neodymium based magnet system. This is the ultimate tweeter for clean,
uncoloured and natural sound. Pure fidelity.
The Diamond material is extremely stiff, and makes it the natural first choice of
dome materials. It works as a perfect piston all the way to 55 kHz. This very high
break-up frequency of the dome keeps the distortion far away from the audible
range for unprecedented sound.
A unique HEXADYM patented magnet system based on 6 radially magnetized
NdFeb magnet blocks. Efficient ventilation and damping of every potentially
resonant cavity behind the dome, surround and voice coil. Precisely mounted
copper sleeve reduces non linear and modulation distortion. The fine cuts of the
acrylic rear chamber help scatter the internal sound waves with a minimum of
damping. Together with the non-resonant magnet system, this provides the high
dynamic response of the tweeter.
A homogenous, linear surround manufactured by SEAS from SONOLEX, a
lightweight fabric with high consistency and climatic stability.
A high temperature voice coil wound on a titanium former for lowering distortion.
Flexible lead-out wires which ensure a good connection between voice coil and
terminals. This arrangement also helps to prevent lead breakage due to the large
excursions encountered when low crossover frequencies are used.
Corian front plate with small horn loading for smooth frequency response,
maximum stability and smooth appearance.

Seas

Scarica

T29D001 Diamond

T29D001 Diamond datasheet

Scarica (1B)
