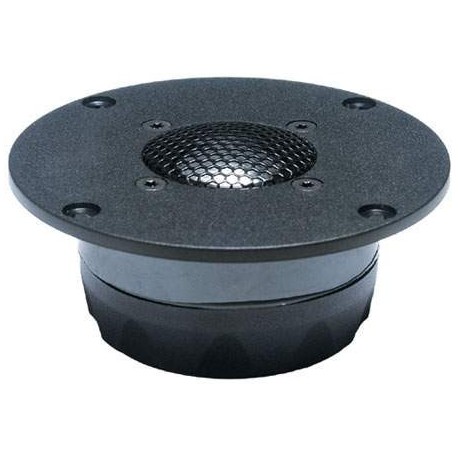

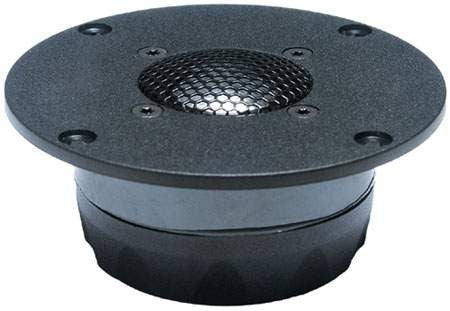

27TBFC-G - KT27G-550 (H1212) Seas

27TBFC/G is a High Defi nition metal dome tweeter with a wide, soft polymer
surround and a rear chamber.
Aluminium/magnesium alloy diaphragm with pistonic behaviour throughout the
audible frequency range, resulting in a good dispersion also above 10kHz.
A Hexagrid protects the diaphragm, and supports a phase plate which compensates
for a slight axial roll off towards 20 kHz.
Sonomax surround for low resonance and excellent mechanical linearity.
Voice coil windings immersed in magnetic fl uid increase short term power handling
capacity and reduce the compression at high power levels.
Stiff and stable rear chamber with optimal acoustic damping allows the tweeter to be
used with moderately low crossover frequencies.
Precision moulded chassis from glass fi bre reinforced plastic, and its front design
offers optimum radiation conditions.
