- Sku:
- Produttore: CIARE

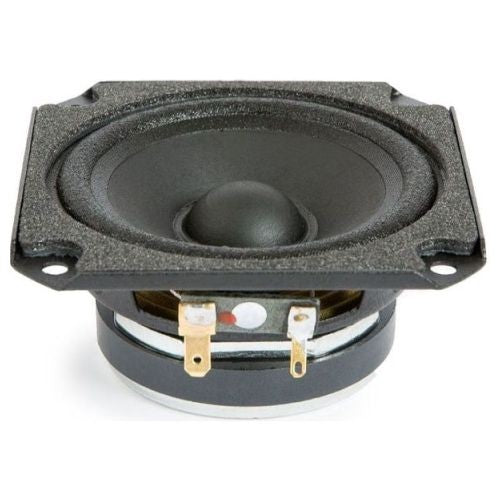

Ciare PA101 - Piccolo Larga Banda 10cm 8 ohm
€35,72
Imposte incluse.
Tempi di consegna dai 3 ai 4 giorni
Ciare PA101 piccolo altoparlante Larga Banda da 100mm con cono in carta e sospensione in nomex 8ohm, 88.5dB, 60W
Scarica il datasheet PDF con misure e dettagli
|
Nominal Diameter |
4”- 100 mm |
| Rated Impedance | 16 Ohm |
| Nominal Power Handling 1 | 60 W |
| Program Power 2 | 120 W |
| Sensitivity 3 | 88,5 dB (2,83V/1m) |
| Frequency Range 4 | 150-20000 Hz |
| Minimum Impendance | - |
| Basket Material | Acciaio |
| Magnet Material | Ferrite |
| Cone Material | cellulosa trattata |
| Cone Shape | - |
| Surround | Nomex |
| Suspension | - |
| Voice Coil Diameter | 1 in - 25 mm |
| Voice Coil Winding Material | - |
| Voice Coil Length | 8,5 mm - 0,33 in |
| Voice Coil Former Material | - |
| Connection Type | - |
| Ferrofluid | No |
| Magnet Gap Height | 5 mm - 0,2 in |
| Max. Peak to Peak Excursion Xlim | - |
| Efficiency Bandwidth Product EBP | 149 |
| Recommended Loading | Cassa chiusa |
| Volume/ Tuning Frequency | |
| Maximum Recommended Frequency | - |
| Version - Part Code |
Ciare PA101 - Piccolo Larga Banda 10cm 8 ohm
€35,72
