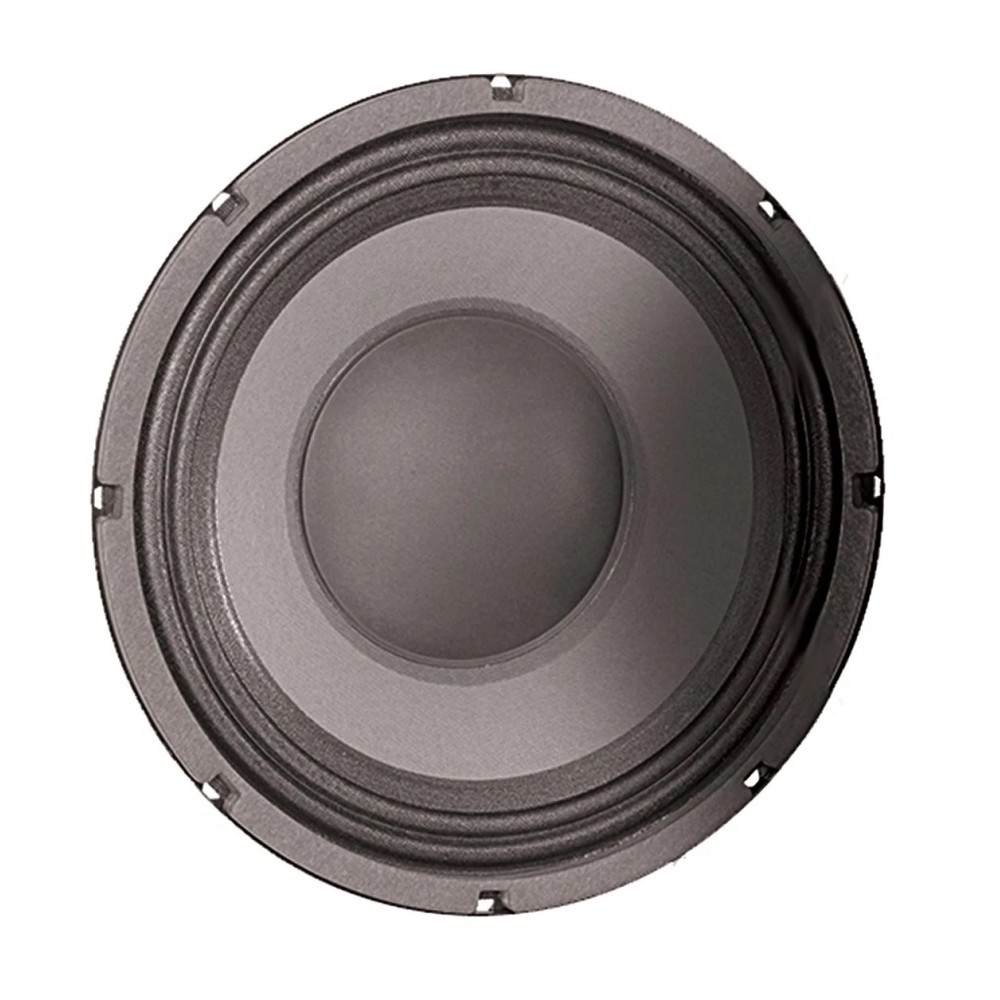

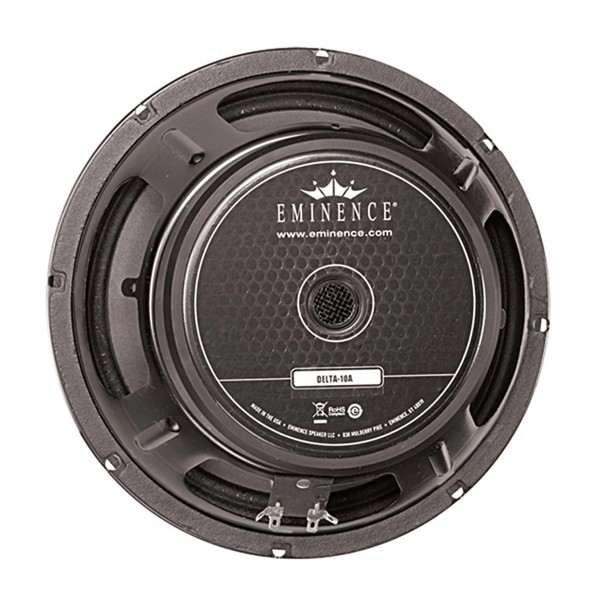

Delta 10B - Eminence - 10" Woofer 16 ohm

145,86 €
Tasse incluse
Tempi di consegna variabili dai 4 ai 30 giorni

Woofer professionale 10 pollici Eminence Delta 10B, 16 omh, serie American Standard, versione 16ohm del Beta versatile per monitor professionali da pavimento o chitarra basso in configurazioni x2

·  Grandezza nominale driver: 10 pollici

·  Cono: carta

·  Magnete: ferrite

·  Bobina mobile: 64mm - rame - supporto ventilato

·  Cestello: acciaio

·  Sospensione: tela

·  Potenza: 350/700W

·  Sensibilità: 98 dB

·  Frequenza di risonanza: 65 Hz

·  Fattore di merito: 0.33

Quantità

Woofer professionale 10 pollici Eminence Delta 10B, 16 omh, serie American Standard, versione 16ohm del Beta versatile per monitor professionali da pavimento o chitarra basso in configurazioni x2

·  Grandezza nominale driver: 10 pollici

·  Cono: carta

·  Magnete: ferrite

·  Bobina mobile: 64mm - rame - supporto ventilato

·  Cestello: acciaio

·  Sospensione: tela

·  Potenza: 350/700W

·  Sensibilità: 98 dB

·  Frequenza di risonanza: 65 Hz

·  Fattore di merito: 0.33

SPECIFICATION
Nominal Basket Diameter 10", 254 mm
Nominal Impedance* 16 Ω
Power Rating*
Program Power 700 W
Watts 350 W
Resonance 65 Hz
Usable Frequency Range 71 Hz - 3.7 kHz
Sensitivity* 98 dB
Magnet Weight 56 oz.
Gap Height 0.375", 9.5 mm
Voice Coil Diameter 2.5", 64 mm
THIELE & SMALL PARAMETERS
Resonant Frequency (fs) 65 Hz
DC Resistance (Re) 11.6 Ω
Coil Inductance (Le) 0.79m H
Mechanical Q (Qms) 8.34
Electromagnetic Q (Qes) 0.35
Total Q (Qts) 0.33
Compliance Equivalent Volume (Vas) 36 liters / 1.27 cu.ft.
Peak Diaphragm Displacement Volume (Vd) 62 cc
Mechanical Compliance of Suspension (Cms) 0.21 mm/N
BL Product (BL) 19.5 T-M
Diaphragm Mass Inc. Airload (MMs) 28 grams
Efficiency Bandwidth Product (EBP) 186
Maximum Linear Excursion (Xmax) 3.5 mm
Surface Area of Cone (Sd) 344.9 cm2
Maximum Mechanical Limit (Xlim) 9 mm
MOUNTING INFORMATION
Recommended Enclosure Volume
Sealed 9.9-12.7 liters / 0.35-0.45 cu.ft.
Vented 10.8-34 liters / 0.38-1.2 cu.ft.
Driver Volume Displaced 0.05 cu.ft. / 1.42 liters
Overall Diameter 10.09", 256.3 mm
Baffle Hole Diameter 9.18", 233.2 mm
Front Sealing Gasket Yes
Rear Sealing Gasket Yes
Mounting Holes Diameter 0.25", 6.4mm
Mounting Holes B.C.D. 9.66", 245.4mm
Depth 4.25", 108 mm
Net Weight 10.8 lbs, 4.9 kg
Shipping Weight 12 lbs, 5.44 kgs
MATERIALS OF CONSTRUCTION
Coil Construction Copper voice coil
Coil Former Polyimide former
Magnet Composition Ferrite magnet
Core Details Vented core

Basket Materials Pressed steel basket
Cone Composition Paper cone
Cone Edge Composition Cloth cone edge
Dust Cap Composition Solid composition paper dust cap
