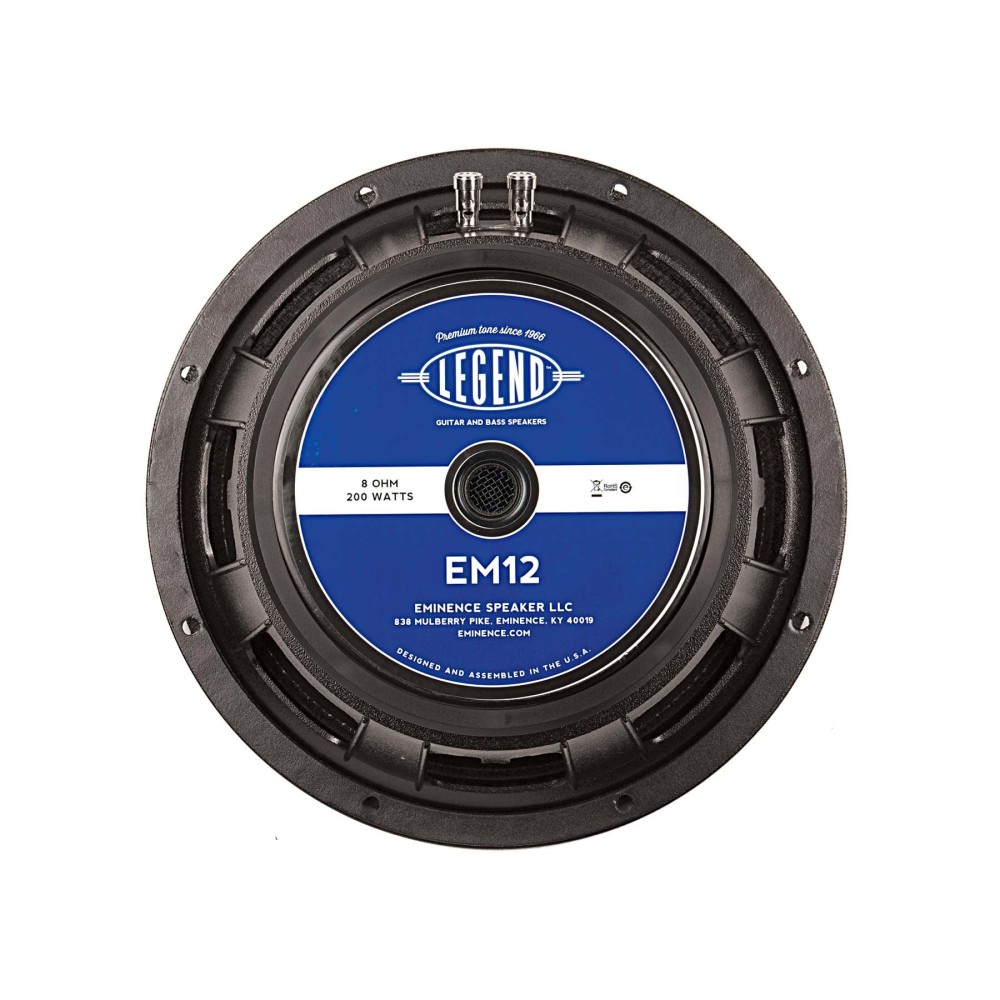

LEGEND EM12 - 12" Lead / Rythm Guitar speaker - 8 ohm

199,80 €

Tasse incluse

non disponibile al momento

Marca

LEGEND EM12 12" impedenza 8 ohm, 200w massimi. Cono da 12 pollici, serie Legend, cestello serie PRO, magnete in ferrite.

Dinamica bassi: aggressiva

Timbrica bassi: piena e rotonda

Dinamica medi: moderata

Timbrica medi: calda

Risposta alti: moderata

Sensibilità (volume): elevata

SPECIFICATION
Nominal Basket Diameter	12", 305 mm
Nominal Impedance*	8 Ω
Power Rating*
Program Power	N/A
Watts	200 W
Resonance	49 Hz
Usable Frequency Range	60 Hz - 4.9 kHz
Sensitivity*	101.1 dB
Magnet Weight	80 oz.
Gap Height	0.375", 9.5 mm
Voice Coil Diameter	2.5", 64 mm
THIELE & SMALL PARAMETERS
Resonant Frequency (fs)	49 Hz
DC Resistance (Re)	6.6 Ω
Coil Inductance (Le)	0.49m H
Mechanical Q (Qms)	7.39
Electromagnetic Q (Qes)	0.29
Total Q (Qts)	0.28
Compliance Equivalent Volume (Vas)	102.31 liters / 3.61 cu.ft.
Peak Diaphragm Displacement Volume (Vd)	68 cc
Mechanical Compliance of Suspension (Cms)	0.26 mm/N
BL Product (BL)	16.9 T-M
Diaphragm Mass Inc. Airload (MMs)	40 grams
Efficiency Bandwidth Product (EBP)	170
Maximum Linear Excursion (Xmax)	1.27 mm
Surface Area of Cone (Sd)	532.4 cm2
Maximum Mechanical Limit (Xlim)	N/A
MOUNTING INFORMATION
Recommended Enclosure Volume
Sealed	Acceptable
Vented	Acceptable
Driver Volume Displaced	0.09 cu.ft. / 2.55 liters
Overall Diameter	12.38", 314.5 mm
Baffle Hole Diameter	11.07", 281.2 mm
Front Sealing Gasket	Yes
Rear Sealing Gasket	Yes
Mounting Holes Diameter	0.26", 6.6mm
Mounting Holes B.C.D.	11.57", 293.9mm
Depth	5.38", 136.5 mm
Net Weight	16.3 lbs, 7.39 kg
Shipping Weight	18 lbs, 8.16 kgs
MATERIALS OF CONSTRUCTION
Coil Construction	Edge wound aluminum voice coil
Coil Former	Polyimide former
Magnet Composition	Ferrite magnet
Core Details	Vented core

Basket Materials	Die cast aluminum basket
Cone Composition	Paper cone
Cone Edge Composition	Cloth edge
Dust Cap Composition	Paper dust cap
