LEGEND EM12N - 12" Lead / Rythm Guitar speaker - 8 ohm

237,00 €

Tasse incluse Tempi di consegna dai 3 ai 4 giorni

Tempi di consegna dai 3 ai 4 giorni

Marca

LEGEND EM12N 12" impedenza 8 ohm, 200w massimi. Cono da 12 pollici, serie Legend, cestello American Standard, magnete in neodimio.

Dinamica bassi: aggressiva

Timbrica bassi: piena e veloce

Dinamica medi: moderata

Timbrica medi: calda

Risposta alti: moderata

Sensibilità (volume): elevata

SPECIFICATION
Nominal Basket Diameter	12", 305 mm
Nominal Impedance*	8 Ω
Power Rating*
Program Power	N/A
Watts	200 W
Resonance	51 Hz

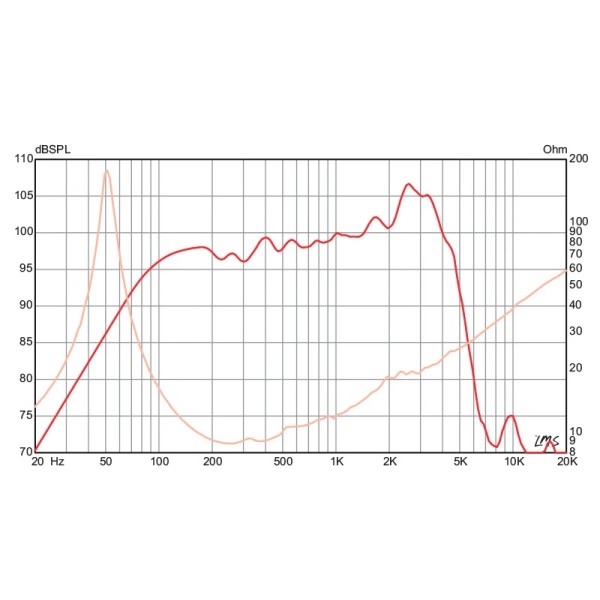

Usable Frequency Range	60 Hz - 4.2 kHz
Sensitivity*	99.9 dB
Magnet Weight	11 oz.
Gap Height	0.375", 9.5 mm
Voice Coil Diameter	2.5", 64 mm
THIELE & SMALL PARAMETERS
Resonant Frequency (fs)	51 Hz
DC Resistance (Re)	7.38 Ω
Coil Inductance (Le)	0.49m H
Mechanical Q (Qms)	7.74
Electromagnetic Q (Qes)	0.35
Total Q (Qts)	0.34
Compliance Equivalent Volume (Vas)	102.31 liters / 3.61 cu.ft.
Peak Diaphragm Displacement Volume (Vd)	118.2 cc
Mechanical Compliance of Suspension (Cms)	0.26 mm/N
BL Product (BL)	16 T-M
Diaphragm Mass Inc. Airload (MMs)	38 grams
Efficiency Bandwidth Product (EBP)	145
Maximum Linear Excursion (Xmax)	2.22 mm
Surface Area of Cone (Sd)	532.4 cm2
Maximum Mechanical Limit (Xlim)	0 mm
MOUNTING INFORMATION
Recommended Enclosure Volume
Sealed	Acceptable
Vented	Acceptable
Driver Volume Displaced	0.064 cu.ft. / 1.81 liters
Overall Diameter	12.17", 309.1 mm
Baffle Hole Diameter	11.13", 282.7 mm
Front Sealing Gasket	Yes
Rear Sealing Gasket	Yes
Mounting Holes Diameter	0.24", 6.1mm
Mounting Holes B.C.D.	11.75", 298.5mm
Depth	5", 127 mm
Net Weight	6.6 lbs, 2.99 kg
Shipping Weight	8.7 lbs, 3.95 kgs
MATERIALS OF CONSTRUCTION
Coil Construction	Edge wound aluminum voice coil
Coil Former	Polyimide former
Magnet Composition
Core Details	Vented core

Basket Materials	Pressed Steel
Cone Composition
Cone Edge Composition	Cloth edge
Dust Cap Composition	Paper dust cap
