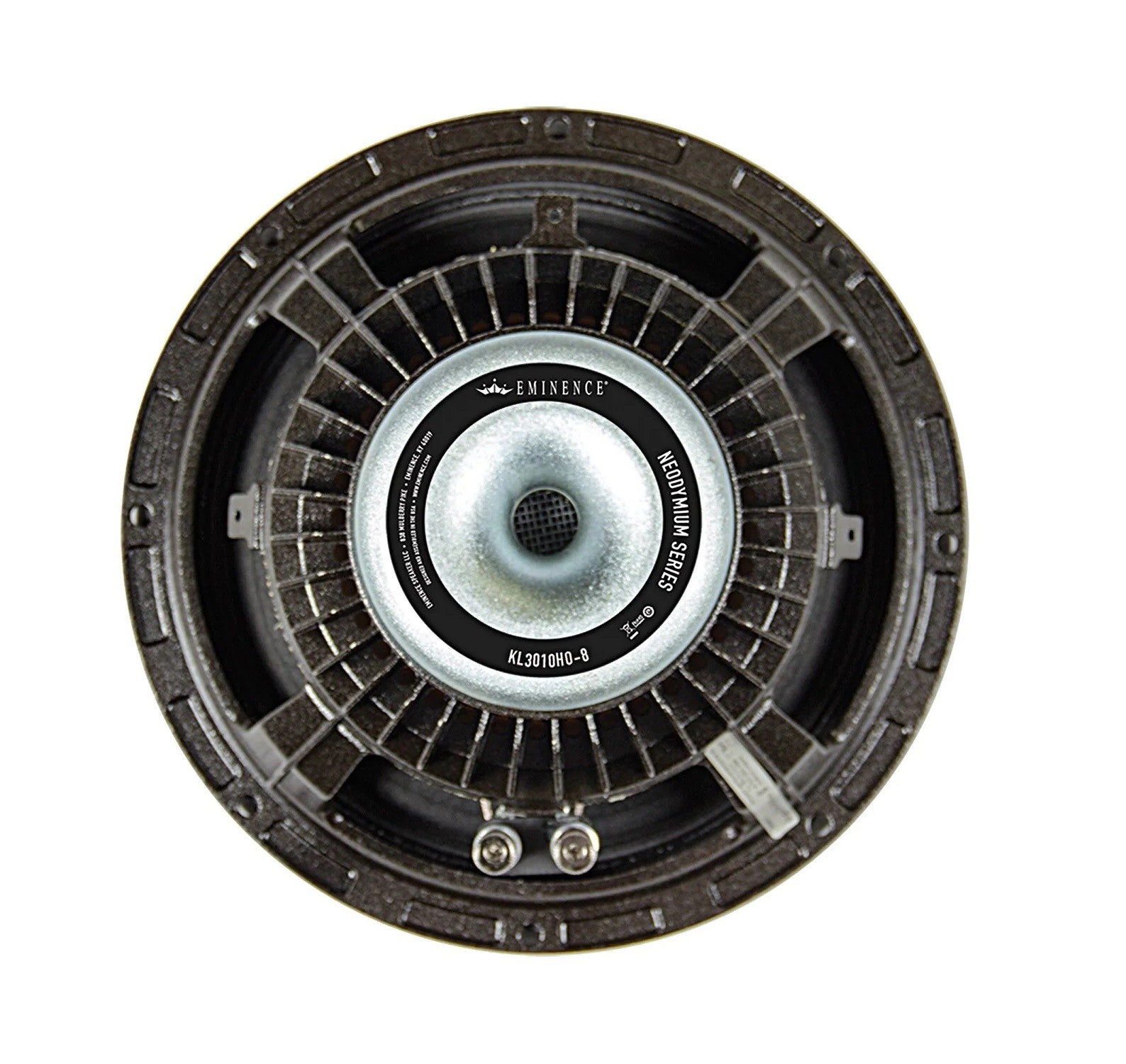

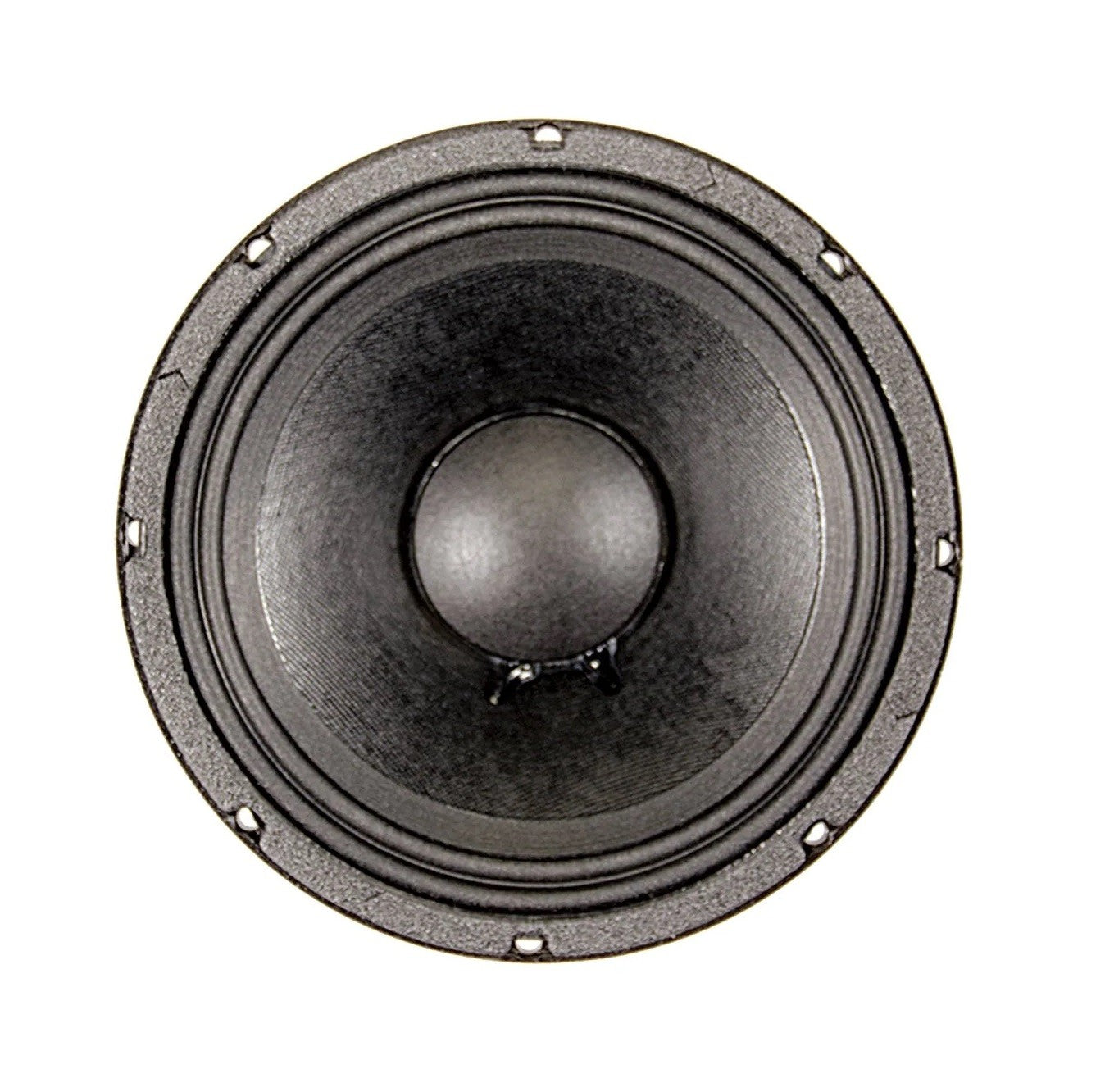

Kappalite KL3010HO - Eminence - 10" Midwoofer 8 ohm
€273,78
Imposte incluse.
Tempi di consegna variabili dai 4 ai 30 giorni
Midwoofer professionale 10 pollici Eminence Kappalite KL3010HO, serie neodimio, midwoofer a banda estesa, molto leggero e ad alta efficienza. Eccellente anche come midrange in grandi sistemi audio professionali
· Grandezza nominale driver: 10 pollici
· Cono: carta trattata
· Magnete: feodimio
· Bobina mobile: 76mm - alluminio - supporto ventilato
· Cestello: alluminio
· Sospensione: tela trattata
· Potenza: 400/800W
· Sensibilità: 98.8 dB
· Frequenza di risonanza: 62 Hz
· Fattore di merito: 0.27
| SPECIFICATION | |
| Nominal Basket Diameter | 10", 254 mm |
| Nominal Impedance* | 8 Ω |
| Power Rating* | |
| Program Power | 800 W |
| Watts | 400 W |
| Resonance | 62 Hz |
| Usable Frequency Range | 400 Hz - 4 kHz |
| Sensitivity* | 98.8 dB |
| Magnet Weight | 11 oz. |
| Gap Height | 0.365", 9.3 mm |
| Voice Coil Diameter | 3", 76 mm |
| THIELE & SMALL PARAMETERS | |
| Resonant Frequency (fs) | 62 Hz |
| DC Resistance (Re) | 5.57 Ω |
| Coil Inductance (Le) | 0.43m H |
| Mechanical Q (Qms) | 5.75 |
| Electromagnetic Q (Qes) | 0.28 |
| Total Q (Qts) | 0.27 |
| Compliance Equivalent Volume (Vas) | 37.21 liters / 1.31 cu.ft. |
| Peak Diaphragm Displacement Volume (Vd) | 162.2 cc |
| Mechanical Compliance of Suspension (Cms) | 0.2 mm/N |
| BL Product (BL) | 16.05 T-M |
| Diaphragm Mass Inc. Airload (MMs) | 34 grams |
| Efficiency Bandwidth Product (EBP) | 219 |
| Maximum Linear Excursion (Xmax) | 4.43 mm |
| Surface Area of Cone (Sd) | 366.1 cm2 |
| Maximum Mechanical Limit (Xlim) | 7.5 mm |
| MOUNTING INFORMATION | |
| Recommended Enclosure Volume | |
| Sealed | Acceptable |
| Vented | Acceptable |
| Driver Volume Displaced | 0.037 cu.ft. / 1.04 liters |
| Overall Diameter | 10.25", 260.4 mm |
| Baffle Hole Diameter | 9.12", 231.7 mm |
| Front Sealing Gasket | Yes |
| Rear Sealing Gasket | Yes |
| Mounting Holes Diameter | 0.29", 7.2mm |
| Mounting Holes B.C.D. | 9.73", 247.1mm |
| Depth | 4.56", 115.9 mm |
| Net Weight | 6.6 lbs, 2.99 kg |
| Shipping Weight | 8.2 lbs, 3.72 kgs |
| MATERIALS OF CONSTRUCTION | |
| Coil Construction | Edge wound aluminum voice coil |
| Coil Former | Fiberglass former |
| Magnet Composition | Neodymium magnet |
| Core Details | Vented Core |
| Basket Materials | Die-cast aluminum basket |
| Cone Composition | Treated paper cone |
| Cone Edge Composition | Sealed cloth edge |
| Dust Cap Composition | Treated paper dust cap |
