HM500

€67.64
VAT included
In Stock

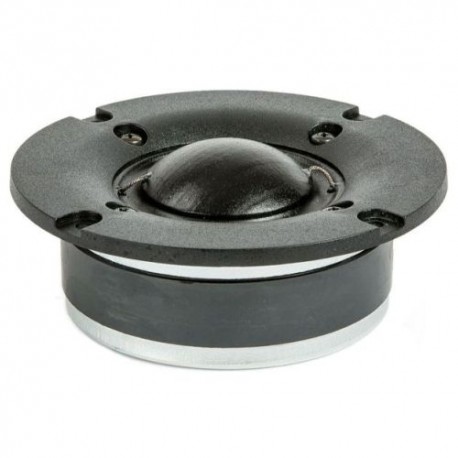

CIARE HM500 Dome Midrange

sviluppato e prodotto in Italia clicca dettagli prodotto per info specifiche / click on details for further infos

Quantity

General Specifications

Musical power (W): 200
Nominal power AES (W) 100
Nominal diameter (''/mm) 2''-50 mm
Nominal impedance (Ω) 8
Voice coil diameter (mm): 50
Sensitivity 1W/1m (dB) 91
Spare part code N/A

Thiele Small Parameters

Note
Re 6,5
Fs 550
Qms 3,8
Qes 0,8
Qts 0,66
Mms 2
Cms
D 58
Vas
BxL 7,5
Linear Mathematical Xmax 0,5
n
Le (1kHz) 0,2

Materials

Basket Type N/A
Magnet Type Ferrite
Cone Material Tela smorzata
Suspension Material
Spider Material
Former material
Winding material
Connector type
Cone shape Dome
Gap height 3

Applications

Applications Midrange
Recommended Loading N/A
Loading Volume N/A
Tuning Frequency N/A
Frequency range 700-5000 Hz

Dimension and weight

Overall diameter 130 mm
Total depth 40 mm
Flange thickness 5 mm
Front mount baffle cutout diameter 103 mm
N. of mounting holes 4
Mounting holes diameter (mm) 5 mm
Bolt circle diameter 116 mm
Gross weight 1,5 kg
