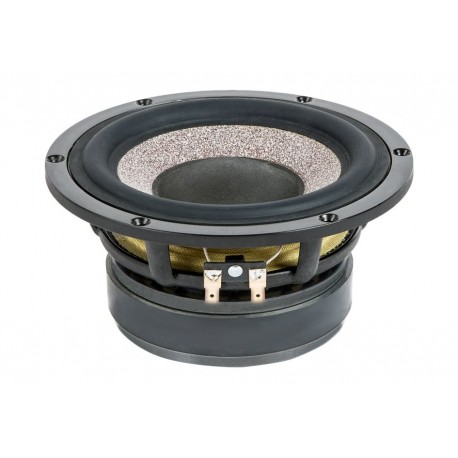

HSG200-22 Ciare

HSG200-22 Ciare

€123.97
In Stock

CIARE HSG200-22 Subwoofer. Fs 38hz. 91db doppia bobina - HSG200-22 DATASHEET

sviluppato e prodotto in Italia clicca dettagli prodotto per info specifiche / click on details for further infos

Quantity

General Specifications

Musical power (W): 800
Nominal power AES (W) 350
Nominal diameter (''/mm) 8/200
Nominal impedance (Ω) 2+2
Voice coil diameter (mm): 75
Sensitivity 1W/1m (dB) 91
Spare part code

Thiele Small Parameters

Note T/S parameters measured with coils in series
Re 3.1 ohm
Fs 38 Hz
Qms 4.8
Qes 0.33
Qts 0.31
Mms 62 g
Cms
D 167 mm
Vas 19 l
BxL 11.8 Tm
Linear Mathematical Xmax 7.5 mm
n 0.33
Le (1kHz) 1.4 mH

Materials

Basket Type Aluminium
Magnet Type Ferite
Cone Material High thickness paper, treated with glass sphere
Suspension Material Rubber
Spider Material Fabric
Former material Fiberglass
Winding material Copper
Connector type Faston
Cone shape Exponential
Gap height 10 mm

Dimension and weight

Overall diameter 224 mm
Total depth 94 mm
Flange thickness 7.5 mm
Front mount baffle cutout diameter 184 mm
N. of mounting holes 8
Mounting holes diameter (mm) 5.5 mm
Bolt circle diameter 210 mm
