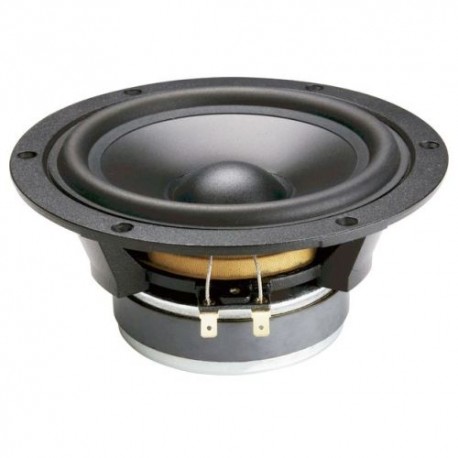

HW172 Ciare

€71.44
VAT included
In Stock
HW172 Ciare

CIARE HW172 Woofer. Fs 46hz. 90db -

sviluppato e prodotto in Italia clicca dettagli prodotto per info specifiche / click on details for further infos

Quantity

General Specifications

Musical power (W): 180
Nominal power AES (W) 80
Nominal diameter (''/mm) 7''-180mm
Nominal impedance (Ω) 8
Voice coil diameter (mm): 32
Sensitivity 1W/1m (dB) 90
Spare part code N/A

Thiele Small Parameters

Note
Re 6
Fs 46
Qms 2,24
Qes 0,45
Qts 0,37
Mms 14,5
Cms 0,81
D 130
Vas 20
BxL 7,59
Linear Mathematical Xmax 3
n 0,44
Le (1kHz) 0,4

Materials

Basket Type Alluminio
Magnet Type Ferrite
Cone Material Polipropilene
Suspension Material Gomma
Spider Material
Former material Alluminio
Winding material
Connector type
Cone shape
Gap height 6

Dimension and weight

Overall diameter 180
Total depth 73,5
Flange thickness 4,5
Front mount baffle cutout diameter 146
N. of mounting holes 4
Mounting holes diameter (mm) 4,5
Bolt circle diameter 166
Gross weight 1,64
