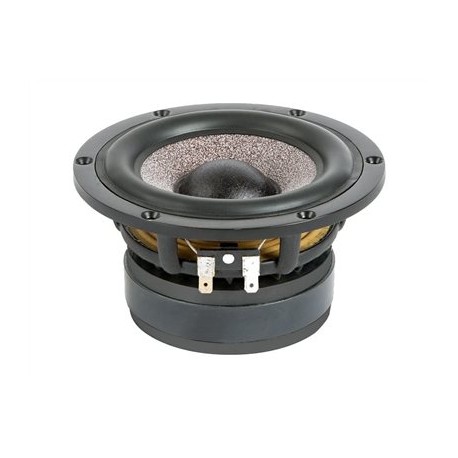

HWG130-4 Ciare

HWG130-4 Ciare

€99.56
VAT included
In Stock

CIARE HWG130-4 mid-Woofer. Carta e fibra di vetro granulare. Fs 40hz. 90.5db - HWG130-4

sviluppato e prodotto in Italia clicca dettagli prodotto per info specifiche / click on details for further infos

Quantity

General Specifications

Musical power (W): 260
Nominal power AES (W) 130
Nominal diameter (''/mm) 5/130
Nominal impedance (Ω) 4
Voice coil diameter (mm): 38
Sensitivity 1W/1m (dB) 90.5
Spare part code

Thiele Small Parameters

Note
Re 2.7 ohm
Fs 40 Hz
Qms 4.8
Qes 0.36
Qts 0.34
Mms 12.8 g
Cms
D 10.5 mm
Vas 12.5 l
BxL 5 Tm
Linear Mathematical Xmax 6.5 mm
n 0.27
Le (1kHz) 0.6 mH

Materials

Basket Type Aluminium
Magnet Type Ferite
Cone Material Paper treated with glass sphere
Suspension Material Rubber
Spider Material Fabric
Former material kapton
Winding material Aluminium
Connector type Faston
Cone shape Exponential
Gap height 8 mm

Dimension and weight

Overall diameter 146 mm
Total depth 71 mm
Flange thickness 6 mm
Front mount baffle cutout diameter 117 mm
N. of mounting holes 6
Mounting holes diameter (mm) 4.5 mm
Bolt circle diameter 135.5 mm
