6L6GAY UNITED USA Pair NOS-NIB (V5 - V6)

6L6GAY - 5881 UNITED USA Pair NOS-NIB (V16 - V19)

€119.00 Save 15%
€140.00
VAT included
Last items in stock
United USA
6L6GAY_UNITED_v16-19

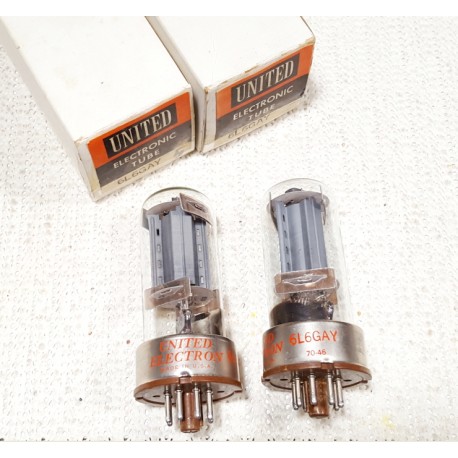

ATTENTION !! are 6L6 standard NOT "C"  MATCHED PAIR 6L6GAY -5881 UNITED USA NOS-NIB, Metal Base, very heavy industry/mil construction, codes 70-46, Grey Plate Bottom Disc Getter, in Original industry Box (v16 -v19) VERY GOOD for Guitar Amp with 5881, 6L6GA-GB (NOT GC !)

Quantity

WARNING: the various 6L6 (GA-GB-GC) are not the same as characteristics, the GC is the last in the series over the years, supports a higher anodic voltage and has a greater plate dissipation power

These are NOS Tubes (New from Old Stock no longer in production)almost certainly already burned & tested in the factory at the time but before the sale they are tested by us one by one, to do this we use our TTA (the warmer) that allows us to heat up to 20 Tubes simultaneously and then perform the measurements with the "Characteristic Meter Avo VCM 163" so the heating time will be the same for the whole lot in order to obtain precise and reliable relative numbers for the subsequent selection made with a software developed by us that compares all the values ​​of Ip and Gm of the whole lot (40 total measurements for 20 tubes lot) and extrapolates the singles, the pairs, the triplett, the quartets etc. to various tolerances.

consider that for each Tube (pentode) there are Two measurements (Ip and Gm) so for the pair of Tubes the measurements to be agreed are well EIGHT

For information we specify that the measurements are performed at constant Va, therefore having Ip and Gm within certain tolerances, also the Ra and the μ will be similar.

For traceability the Tubes are individually numbered on bulb/base and inside the box, other numbers that you read inside the box are NOT the values ​​but are our references for recording the measurements on our archive.

United USA
6L6GAY_UNITED_v16-19

Data sheet

note
Burned, Tested & Selected by Audiokit with TTA+ AVO VCM 163 + Matching Software developed by us
dati
Update 25 Febr 2019 MZ
