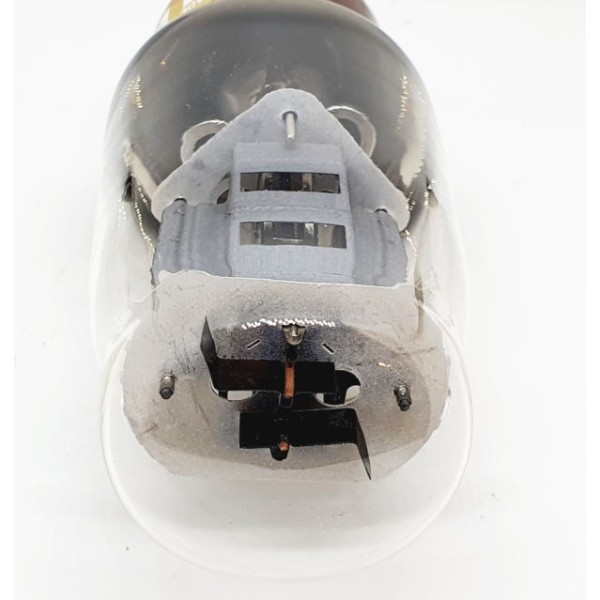

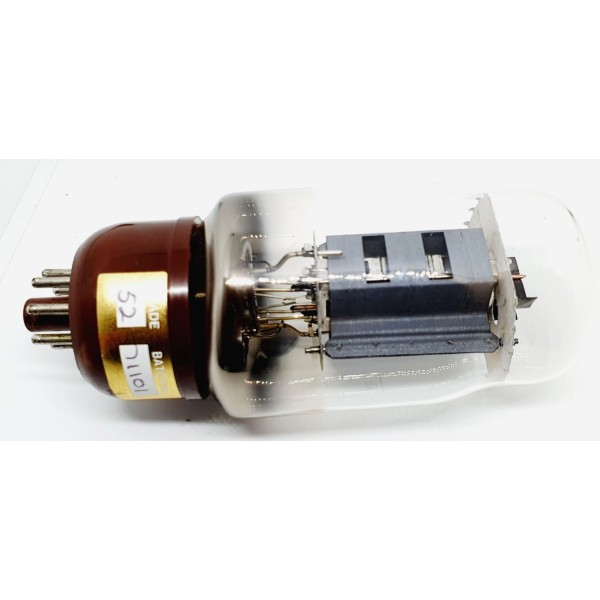

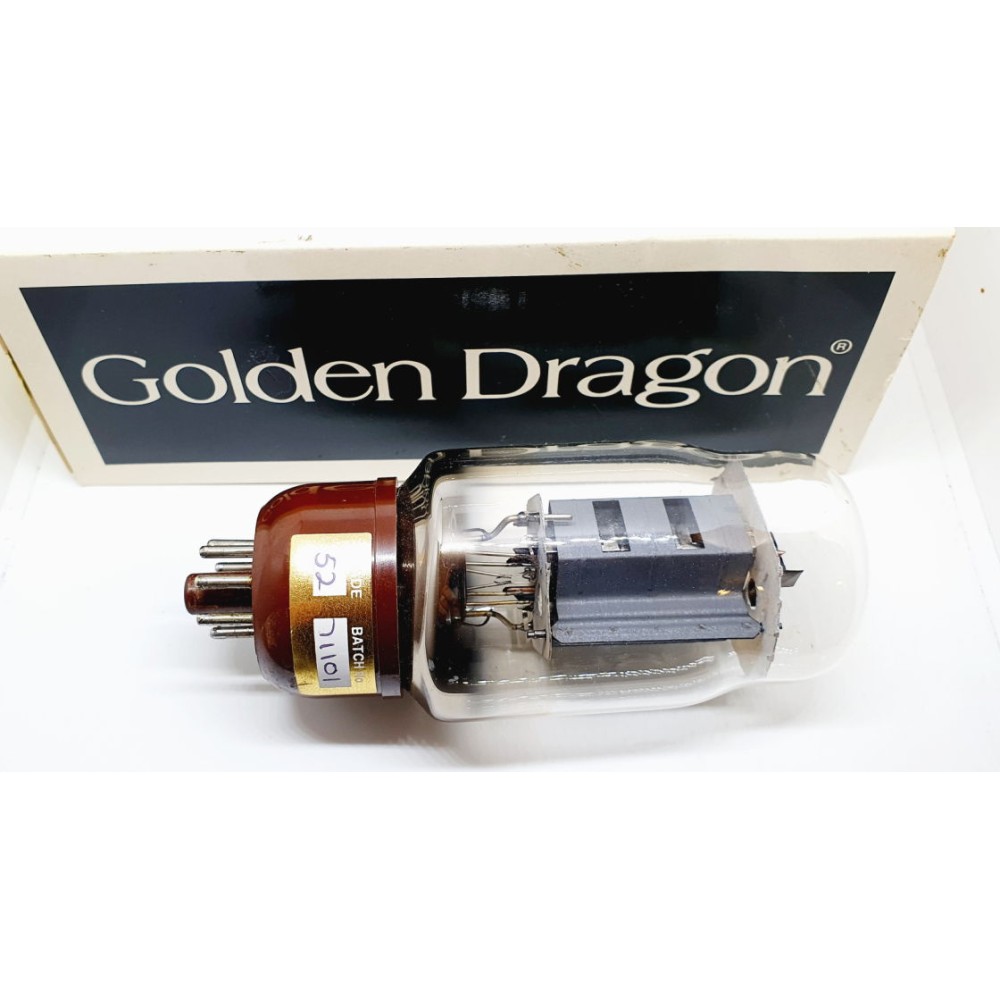

KT66 Retrò 97 Z Golden Dragon 1997 NOS-NIB Single (v8)

KT66 Retrò 97 Z Golden Dragon 1997 NOS-NIB Single (v8)

€68.00 Save 15%
€80.00
VAT included
Out-of-Stock
Golden Dragon
KT66_RETRO_GoldenDr_v8

SINGLE KT66 97 Z Retrò Golden Dragon, 1997 year, grade 57 batch ?1101, Grey Plates, Base Double O Getter, Brown Base, in original Box for pairbut the tube is only ONE (v8)  Ip 84mA - Gm 6mA/V with -15V grid / 250V screen / 250Va, GEC REPLICA

Quantity

THE BEST ! THE MOST PRECISE! with very tight tolerances, they are chosen by us during the normal selection for the coupling, to consider that out a pair so at least every 20 tubes measured, considering that for each tube (pentode) there are two measurements to agree (Ip e Gm for each pentode)

To achieve this we use our TTA (the warmer) which allows us to heat up to 20 tubes at the same time and then perform the measurements with the "Characteristic Meter Avo VCM 163" so the heating time will be the same for the whole lot so as to obtain precise and reliable relative numbers for the subsequent selection made with a software developed by us that compares all the values ​​of Ip and Gm of the whole and extrapolates the pairs, the triplets, the quartets to the various tolerances.



For traceability the Tubes are individually numbered on bulb/base and inside the box, other numbers that you read inside the box are NOT the values ​​but are our references for recording the measurements on our archive.


For information we specify that the measurements are performed at constant Va, therefore having Ip and Gm within close tolerances, also the Ra and the μ will be similar.

Golden Dragon
KT66_RETRO_GoldenDr_v8

Data sheet

note
Burned & Tested by Audiokit with TTA+ AVO VCM 163 + Matching Software developed by us
dati
Ins 09/04/2024 MZ
