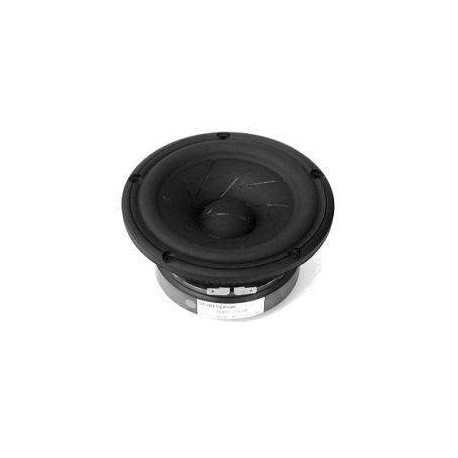

Scan Speak 15M-4531-K00 revelator

€199.00
VAT included
In Stock
Scan Speak

Scan Speak Revelator 15M-4531-K00 Midrange Fullrange 4 ohm sliced paper Fs 35Hz, Sensitivity 90db, RMS 50w

DOWNLOAD DATASHEET for graphic, measures, dimensions

Quantity

MIDRANGE 15M/4531K00
The Revelator midranges are well known for their sliced paper cone technology. The
slices are filled with damping glue, which dramatically reduces break-up modes in the
diaphragm. In combination with Scan-Speaks low-loss linear suspension and the
patented Symmetrical Drive (SD-1) it represented a breakthrough in midrange clarity
and overall smooth frequency response characteristics.

KEY FEATURES:
- Excellent Midrange Reproduction
- Sliced Cone (Controls Cone Breakups)
- High Output 90dB @ 2,83V
- Patented Symmetrical Drive motor design
- Low-loss linear suspension
- Die cast Alu Chassis vented below spider

T-S Parameters
Resonance frequency [fs] 35 Hz
Mechanical Q factor [Qms] 4.80
Electrical Q factor [Qes] 0.24
Total Q factor [Qts] 0.23
Force factor [Bl] 6 Tm
Mechanical resistance [Rms] 0.50 kg/s
Moving mass [Mms] 11 g
Suspension compliance [Cms] 1.88 mm/N
Effective diaph. diameter [D] 110 mm
Effective piston area [Sd] 95 cm²
Equivalent volume [Vas] 23.8 l
Sensitivity (2.83V/1m) 90 dB
Ratio Bl/√Re 3.21 N/√W
Ratio fs/Qts 153 Hz
Electrical Data
Nominal impedance [Zn] 4 L
Minimum impedance [Zmin] 4.2 L
Maximum impedance [Zo] 73.5 L
DC resistance [Re] 3.5 L
Voice coil inductance [Le] 0.17 mH
Power Handling
100h RMS noise test (IEC 17.1) 50 W
Long-term max power (IEC 17.3) 150 W
Voice Coil and Magnet Data
Voice coil diameter 38 mm
Voice coil height 11 mm
Voice coil layers 2
Height of gap 5 mm
Linear excursion ± 3 mm
Max mech. excursion ± 8 mm
Unit weight 1.7 kg
