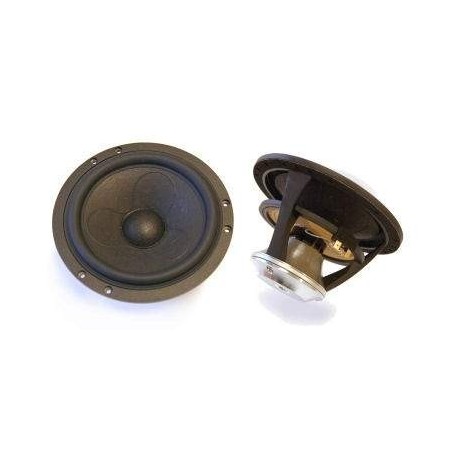

Scan Speak 18WU-8741T00 illuminator

€369.00
VAT included
In Stock
Scan Speak

Scan Speak illuminator 18WU-8741T00 Midwoofer 8 ohm Neo magnet, Under hung motor system, exceptionally long linear stroke

used in many TOP diy projects

DOWNLOAD DATASHEET for graphic, measures, dimensions

Quantity

MIDWOOFER 18WU/4741T00
The Illuminator midranges and midwoofers are in every aspect unusual designs with
the open construction, the extremely long linear excursion and patented under-hung
SD-3 (Symmetrical Drive) neodymium motor system, which due to copper caps and its
construction ensures very low distortion, adding the unique patented cones, low-loss
linear suspension the result is: “The Very Best Money Can Buy”!

KEY FEATURES:
Under-Hung Neodymium Motor Design
Patented Sandwich Paper Cone
Low-Loss linear suspension
Patented Symmetrical Drive (SD-3)
Exceptionally Long Linear Excursion
Patented Design
Notes:
IEC specs. refer to IEC 60268-5 third edition.
All Scan-Speak products are RoHS compliant.
Data are subject to change without notice.
Datasheet updated: February 22, 2011.
T-S Parameters
Resonance frequency [fs] 31 Hz
Mechanical Q factor [Qms] 3.51
Electrical Q factor [Qes] 0.37
Total Q factor [Qts] 0.33
Force factor [Bl] 7.5 Tm
Mechanical resistance [Rms] 1.00 kg/s
Moving mass [Mms] 18 g
Suspension compliance [Cms] 1.46 mm/N
Effective diaph. diameter [D] 140 mm
Effective piston area [Sd] 154 cm²
Equivalent volume [Vas] 48.6 l
Sensitivity (2.83V/1m) 85.4 dB
Ratio Bl/√Re 3.09 N/√W
Ratio fs/Qts 93 Hz
Electrical Data
Nominal impedance [Zn] 8 N
Minimum impedance [Zmin] 7.5 N
Maximum impedance [Zo] 61.9 N
DC resistance [Re] 5.9 N
Voice coil inductance [Le] 0.41 mH
Power Handling
100h RMS noise test (IEC 17.1) 80 W
Long-term max power (IEC 17.3) 150 W
Voice Coil and Magnet Data
Voice coil diameter 42 mm
Voice coil height 8 mm
Voice coil layers 4
Height of gap 20 mm
Linear excursion ± 9 mm
Max mech. excursion ± 16 mm
Unit weight 1.7 kg
