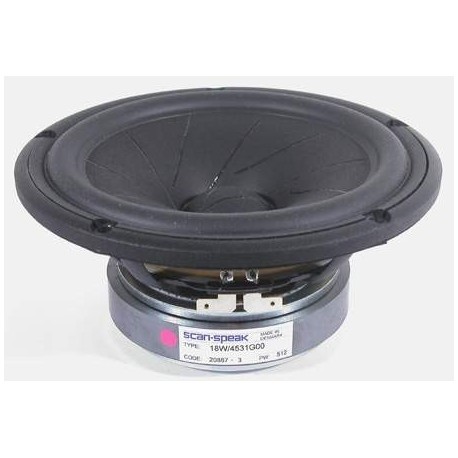

Scan Speak 18W-4531G00 revelator

€214.00
VAT included
In Stock
Scan Speak

Scan Speak Revelator 18W-4531G00 Midwoofer 4 ohm low loss lin susp sliced paper, SD-1 motor

DOWNLOAD DATASHEET for graphic, measures, dimensions

Quantity

The Revelator series has for years been celebrated for producing
the best sounding electro dynamic transducers in the world.
Since ScanSpeak was founded in 1970, the audio engineers and
R&D experts working on the line have been on a quest to create
drivers that reveal all the sound in recordings, hiding nothing from
the listener. This quest has resulted in several revolutionary
inventions that remove distortion in the magnet systems and in
the moving parts of the speaker. The philosophy is that the sound
has to be very dynamic, giving a perfect transient response and
providing tonal balance.
One of the latest inventions realized in the Revelator midrange
design is the sliced paper (or wood) cone, which reduces breakup
modes in the membrane dramatically. The result is an
undisputed clarity in sound.
Driver Highlights: Low loss linear suspension, sliced paper cone,
SD-1 motor

Electrical Data
Nominal impedance Zn 4 ohm
Minimum impedance Zmin -- ohm
Maximum impedance Zo -- ohm
DC resistance Re 3.4 ohm
Voice coil inductance Le 0.3 mH
T-S Parameters
Resonance Frequency fs 33 Hz
Mechanical Q factor Qms 5.2
Electrical Q factor Qes 0.38
Total Q factor Qts 0.35
Force factor Bl 5.7 Tm
Mechanical resistance Rms 0.7 Kg/s
Moving mass Mms 17.5 g
Suspension compliance Cms -- mm/N
Effective cone diameter D -- cm
Effective piston area Sd 150 cm2
Equivalent volume Vas 42 ltrs
Sensitivity (2.83V/1m) 90 dB
Ratio BL/√(Re) --
Ratio fs/Qts F

Power handling
100h RMS noise test (IEC) 70 W
Long-term Max Power (IEC 18.3) -- W
Max linear SPL (rms) @ power -- dB/W
Short Term Max power (IEC 18.2) -- W
Voice Coil and Magnet Parameters
Voice coil diameter 38 mm
Voice coil height -- mm
Voice coil layers --
Height of the gap -- mm
Linear excursion +/- 6.5 mm
Max mech. excursion +/- 11 mm
Flux density of gap -- mWb
Total useful flux -- mWb
Diameter of magnet -- mm
Height of magnet -- mm
Weight of magnet -- Kg
