Scan Speak R2904-7000-00 revelator

€379.00
VAT included
In Stock
Scan Speak

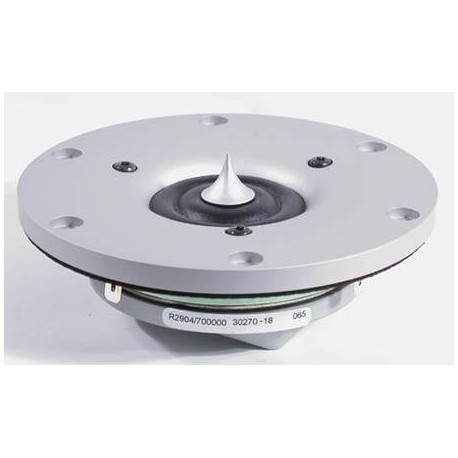

Scan Speak Revelator R2904-7000-00 Tweeter ringradiator silverfaceplate- phaseplug multiple chamber 4 ohm Fs 520Hz, Sensitivity 94.5db

Used on Vertigo, Vertigo Plus, Ekta, Ekta Grande and many other DIY projects

DOWNLOAD DATASHEET for graphic, measures and dimensions

Quantity

TWEETER R2904/700000
The Revelator tweeter series consist of the revolutionary ring radiator design, which
put an end to some of the design trade-offs in dome designs. The ring radiator still
offers unrivalled performance. Additional enhancements have been made to reduce
distortion and power compression, such as large neodymium magnet systems for high
sensitivity, and a careful design to optimize airflow in the chambers.

KEY FEATURES:
- 1" Ring Dome Diaphragm
- Patented Symmetrical Drive (SD-2) motor
- Non Resonant Alu Rear Chamber
- Patented Phase Plug Design
- Large Ring Neo Magnet f. High Output
- Silver Anodized Mashined Alu Face Plate

T-S Parameters
Resonance frequency [fs] 520 Hz
Mechanical Q factor [Qms] 2.90
Electrical Q factor [Qes] 0.38
Total Q factor [Qts] 0.33
Force factor [Bl] 2.8 Tm
Mechanical resistance [Rms] 0.34 kg/s
Moving mass [Mms] 0.3 g
Suspension compliance [Cms] 0.31 mm/N
Effective diaph. diameter [D] 27 mm
Effective piston area [Sd] 5.6 cm²
Equivalent volume [Vas] 0.01 l
Sensitivity (2.83V/1m) 94.5 dB
Ratio Bl/√Re 1.62 N/√W
Ratio fs/Qts 1566 Hz
Electrical Data
Nominal impedance [Zn] 4 K
Minimum impedance [Zmin] 3.7 K
Maximum impedance [Zo] 26.2 K
DC resistance [Re] 3 K
Voice coil inductance [Le] 0.01 mH
Power Handling
100h RMS noise test (IEC 17.1)* 160 W
Long-term max power (IEC 17.3)* - W
*Filter: 2. order HP Butterworth, 2.5 kHz
Voice Coil and Magnet Data
Voice coil diameter 26 mm
Voice coil height 2.1 mm
Voice coil layers 2
Height of gap 2.5 mm
Linear excursion ± 0.2 mm
Max mech. excursion ± 1.6 mm
Unit weight 0.4 kg
