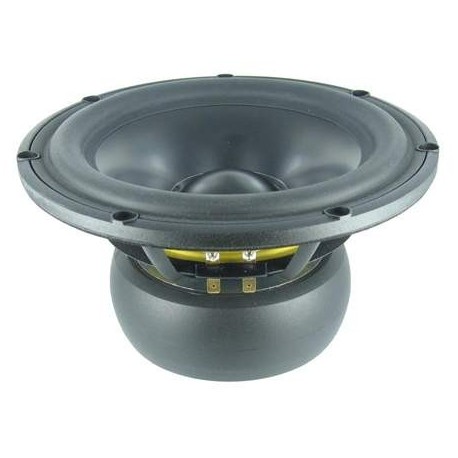

Scan Speak 22W-8857T00 Alu revelator

€339.00
VAT included
In Stock
Scan Speak

Scan Speak Revelator 22W-8857T00 Woofer Black Alu cone 8 ohm + gomma+ logo Fs 23Hz, Sensitivity 86db, RMS 170w Qts 0.3

DOWNLOAD DATASHEET for graphic, measures, dimensions

Quantity

WOOFER 22W/8857T00
The Revelator woofers and subwoofers features very rigid cones in paper or aluminium
that operates as a piston over a wide frequency range, in combination with Scan-
Speaks low-loss linear suspension and the patented Symmetrical Drive (SD-1) it
results in very low distortion and a smooth and well behaved frequency response as
well as perfect transient reproduction.

KEY FEATURES:
Patented Symmetrical Drive Motor Design
Low-Loss linear suspension
Die cast Alu Chassis vented below spider
Rigid Black Anodized Alu Cone
Low Damping SBR Rubber Surround
Ferrite Magnet System w. Rubber Boot

T-S Parameters
Resonance frequency [fs] 23 Hz
Mechanical Q factor [Qms] 4.90
Electrical Q factor [Qes] 0.32
Total Q factor [Qts] 0.30
Force factor [Bl] 10.1 Tm
Mechanical resistance [Rms] 1.09 kg/s
Moving mass [Mms] 37 g
Suspension compliance [Cms] 1.29 mm/N
Effective diaph. diameter [D] 167 mm
Effective piston area [Sd] 220 cm²
Equivalent volume [Vas] 87.7 l
Sensitivity (2.83V/1m) 86 dB
Ratio Bl/√Re 4.06 N/√W
Ratio fs/Qts 77 Hz
Electrical Data
Nominal impedance [Zn] 8 J
Minimum impedance [Zmin] 7.2 J
Maximum impedance [Zo] 101 J
DC resistance [Re] 6.2 J
Voice coil inductance [Le] 0.35 mH
Power Handling
100h RMS noise test (IEC 17.1) 170 W
Long-term max power (IEC 17.3) - W
Voice Coil and Magnet Data
Voice coil diameter 50 mm
Voice coil height 24 mm
Voice coil layers 2
Height of gap 6 mm
Linear excursion ± 9 mm
Max mech. excursion ± 14 mm
Unit weight 3.6 kg
