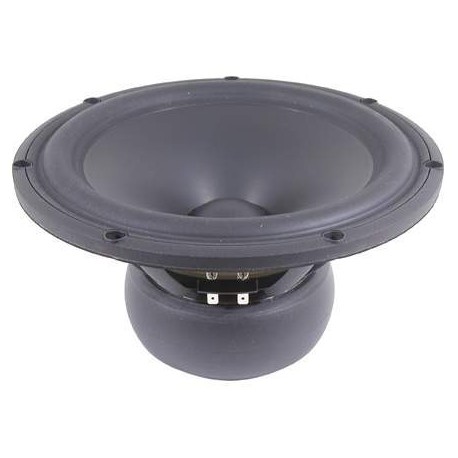

Scan Speak 26W-8861T00 PAper revelator

€399.00
VAT included
In Stock
Scan Speak

Scan Speak Revelator 26W-8861T00 Woofer hard paper cone 8 ohm + gomma+logo Fs 19Hz, Sensitivity 88.5db, RMS 170w Qts 0.31

DOWNLOAD DATASHEET for graphic, measures, dimensions

Quantity

WOOFER 26W/8861T00
The Revelator woofers and subwoofers features very rigid cones in paper or aluminium
that operates as a piston over a wide frequency range, in combination with Scan-
Speaks low-loss linear suspension and the patented Symmetrical Drive (SD-1) it
results in very low distortion and a smooth and well behaved frequency response as
well as perfect transient reproduction.

KEY FEATURES:
- Patented Symmetrical Drive Motor Design
- Low-Loss linear suspension
- Die cast Alu Chassis vented below spider
- Rigid Paper Cone
- Low Damping SBR Rubber Surround
- Ferrite Magnet System w. Rubber Boot

T-S Parameters
Resonance frequency [fs] 19 Hz
Mechanical Q factor [Qms] 5.20
Electrical Q factor [Qes] 0.33
Total Q factor [Qts] 0.31
Force factor [Bl] 9.9 Tm
Mechanical resistance [Rms] 1.00 kg/s
Moving mass [Mms] 43.5 g
Suspension compliance [Cms] 1.61 mm/N
Effective diaph. diameter [D] 202 mm
Effective piston area [Sd] 320 cm²
Equivalent volume [Vas] 231 l
Sensitivity (2.83V/1m) 88.5 dB
Ratio Bl/√Re 3.98 N/√W
Ratio fs/Qts 61 Hz
Electrical Data
Nominal impedance [Zn] 8 I
Minimum impedance [Zmin] 7.1 I
Maximum impedance [Zo] 104 I
DC resistance [Re] 6.2 I
Voice coil inductance [Le] 0.35 mH
Power Handling
100h RMS noise test (IEC 17.1) 170 W
Long-term max power (IEC 17.3) - W
Voice Coil and Magnet Data
Voice coil diameter 50 mm
Voice coil height 24 mm
Voice coil layers 2
Height of gap 6 mm
Linear excursion ± 9 mm
Max mech. excursion ± 14 mm
Unit weight 3.7 kg
