New Scan Speak 32W/4878T01 Paper revelator View larger

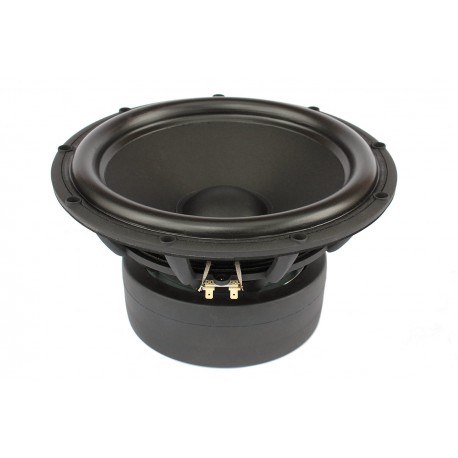

Scan Speak 32W/8878T11 Paper revelator

New product

Scan Speak Revelator 28W-4878T00 Woofer hard paper cone 4 ohm + gomma+logo Fs 18Hz, Sensitivity 88.2db, RMS 200w Qts 0.3

DOWNLOAD DATASHEET for graphic, measures, dimensions

More details




--- Available for Sale in 3-7 Days ---

527,05 €

  • WOOFER 28W/4878T00
    The 28W/4878T00 is a very powerful 28cm sub woofer, with its large 3” voice coil,
    extreme linear excursion and low resonance frequency is it perfect to reproduce the
    deepest frequencies. It features a paper-sandwich cone with very high stiffness and
    relative low weight. The motor system has heavy duty copper sleeves for optimizing
    eddy currents and minimizing self-induction.

    KEY FEATURES:
    · Paper sandwich cone
    · Spider with balanced tinsel leads
    · 3” Voice coil, Titanium former and paper reinforced
    · Patented Symmetrical Drive motor
    · Extreme linear excursion (+/-14 mm)

    · Stiff and strong die cast aluminium chassis


    T-S Parameters
    Datasheet updated: May 15. 2017
    Resonance frequency [fs] 18 Hz
    Mechanical Q factor [Qms] 5.6
    Electrical Q factor [Qes] 0.32
    Total Q factor [Qts] 0.3
    Force factor [Bl] 11.2 Tm
    Mechanical resistance [Rms] 2.3 kg/s
    Moving mass [Mms] 114.5 g
    Compliance [Cms] 0.68 mm/N
    Effective diaph. diameter [D] 215 mm
    Effective piston area [Sd] 363 cm²
    Equivalent volume [Vas] 127 l
    Sensitivity (2.83V/1m) 88.2 dB
    Ratio Bl/√Re 6.36 N/√W
    Ratio fs/Qts 60 Hz
    Electrical Data
    Voice Coil & Magnet Data
    Nominal impedance [Zn] 4 Ω
    Minimum impedance [Zmin] 3.8 Ω
    Maximum impedance [Zo] 53 Ω
    DC resistance [Re] 3.1 Ω
    Voice coil inductance [Le] 0.5 mH
    Power Handling
    100h RMS noise test (IEC 17.1) 200 W
    Long-term max power (IEC 17.3) 500 W
    Voice coil diameter 75 mm
    Voice coil height 36 mm
    Voice coil layers 2
    Height of gap 8 mm
    Linear excursion ± 14 mm
    Max mech. excursion ± 26 mm
    Unit weight 7.5 kg

  • note --- Available for Sale in 3-7 Days ---
