- Sku:
- Produttore: Supravox

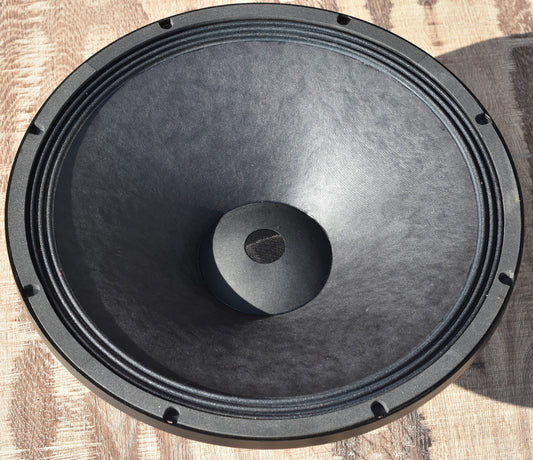

380 GMF LC classic SupraVox - grande Woofer 8 ohm
Tempi di consegna 6-8 giorni
Dettagli
SupraVox 380 GMF - Woofer 39 Cm, 120Wrms, 8 ohm 97 db, banda passante 30Hz - 600Hz,. Tutte le specifiche e link nei dettagli prodotto. Grande Woofer ideale per bass reflex in diffusori multivia ad alta efficienza HiFi Home, leggero e iperarticolato
Visualizza dettagli completi
380 GMF LC classic SupraVox - grande Woofer 8 ohm
https://www.supravox.fr/products/380-gmf-lc-haut-parleur-de-grave-98db-8-ohms
|
Sensibilité (2,83V/1m) : |
98,3dB |
| Sensibilité (1W/1m) : | . |
| Bande passante : | 35Hz-600KHz |
| Impédance : | 8 Ω |
| Suspension : | |
| Excursion linéaire : | +/- 7 mm |
| Aimant : | |
| Champ magnétique : | |
| Saladier : | Aluminium |
| Diamètre HP : | 388mm |
| Distance trous de fixation : | |
| Diamètre perçage enceinte : | |
| Profondeur HP : | |
| Poids HP : |
| Fs : | 38.5565 Hz |
| Re : | 5,8 Ω |
| L1 kHz : | 0,9197 mH |
| Qts : | 0,3576 |
| Qes : | 0,3811 |
| Qms : | 5,7779 |
| Vas : | 232.9744 L |
| Bl : | 17.6167 |
| Mms : | 84.1842 g |
| Sd : | 9.079E-2 cm² |
The aim of the Classic Series is to maintain Supravox’s philosophy of developing high performance broadband speakers. We are working to further extend the useful bandwidth for the highest possible efficiency, while continuously improving the definition, quality and linearity of response. From 135 to 380 mm diameter, the audiophile can satisfy his passion.
Supravox, starting from a blank page but based on its long experience, redefines what a large-diameter high-fidelity woofer is: neutral and dynamic. 18 months of research and development is revealed in the new Supravox 380 series.
The 380 GMF high efficiency woofer (98.3 dB), is the non-identical twins of the 380 GMF PRO: this version is dedicated to a high-fidelity/monitoring use, in the spirit of the Altec 416, or JBL 2226.
It is optimized for a great flexibility of use, in bass-reflex from 120L to 200L, passing the “classic” 140L/40Hz (2 PVC vents of 160mm by 25cm, 45Hz cut-off).
In 180L tuned at 40Hz it covers the 40-500Hz band. Recommended vents: 2* PVC 125mm by 8.5cm, or 2* PVC 160mm by 19cm (see 3* PVC 160mm by 30cm) depending on the listening level.
Its new motor uses a 76mm coil made of 20mm inner/outer double layer copper wire, combined with a profiled core, this assembly offers a symmetrical travel of +/- 7mm.
Two aluminium demodulation rings stabilize the motor field, but also reduce Le(i), linearize and symmetrize Le(x).
The moving parts take advantage of our new exponential cone, this one by the formulation of its paper offers a better damping which guarantees clarity and definition, while ensuring by its profile a greater rigidity offering a reduced distortion in the low register.
This brand new driver outperforms our previous 400 GMFs in all points: linearity of response, clarity of sound, dynamic range, thermal and mechanical resistance, and significantly reduced distortion.
Disponibile per la Vendita o Spedizione in 10-20 gg
