Esaurito
- Sku:
- Produttore: EMINENCE

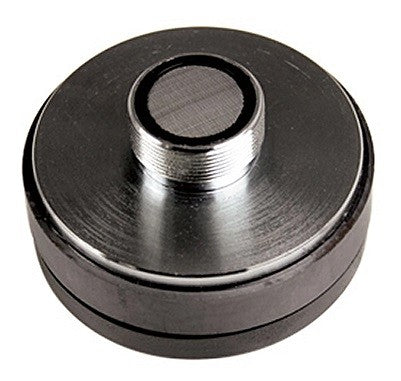

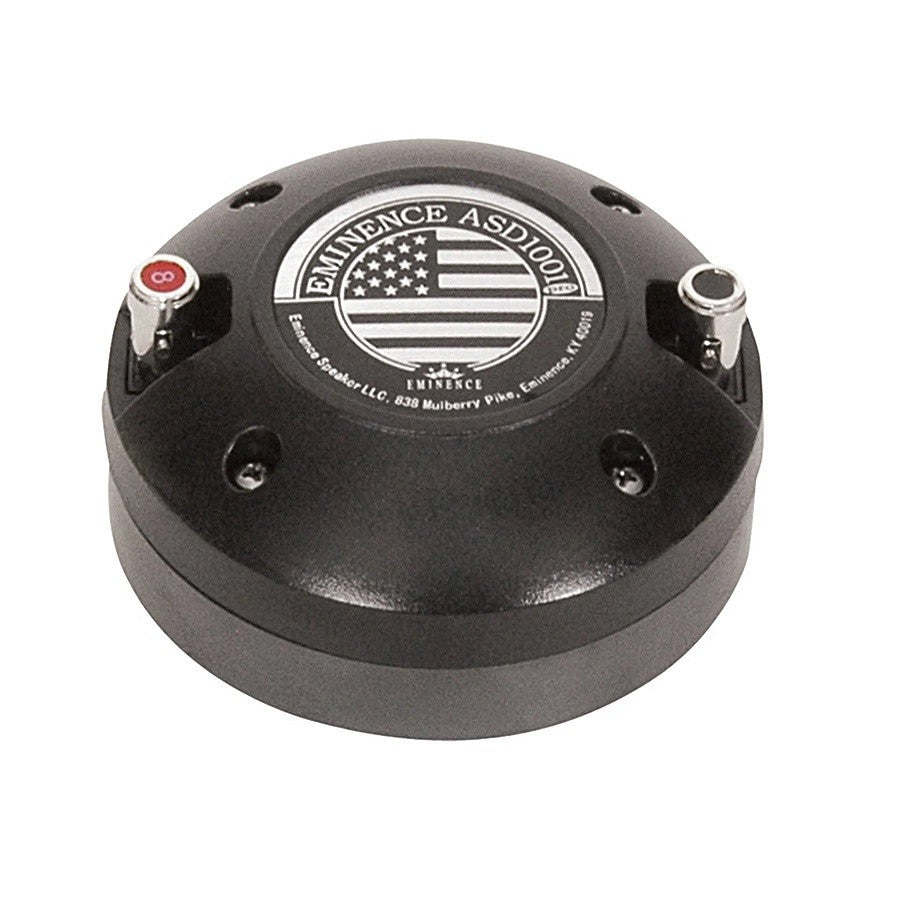

ASD 1001 1" Eminence - Driver a compressione 1 pollice
€44,00
Imposte incluse.
Tempi di consegna variabili dai 4 ai 30 giorni
Dettagli
ASD 1001 1" Eminence - Driver a compressione 1 pollice. 8 ohm, 50W, 104 dB, diaframma in titanio, supporto in alluminio, diametro bobina 1.3"; frequenza di utilizzo 2.5-20kHz, magnete in ferrite. avvitabile
Visualizza dettagli completi
ASD 1001 1" Eminence - Driver a compressione 1 pollice
€44,00
ASD 1001 1" Eminence - Driver a compressione 1 pollice. 8 ohm, 50W, 104 dB, diaframma in titanio, supporto in alluminio, 2.5-20kHz, magnete in ferrite. avvitabile
| SPECIFICATION | |
| Throat Size | 1", 25.4mm |
| Nominal Impedance* | 8Ω |
| Minimum Impedance | 7.7 ohm @ 3.0 kHz |
| Power Rating** | 50 W (EIA-426A) |
| Resonance | 0.59kHz |
| Usable Frequency Range | 2500Hz-20kHz |
| Recommended Crossover | 2.5 kHz / 18 dBkHz |
| Sensitivity*** | 104.4 |
| Magnet Material | Ferrite |
| Magnet Weight | 12oz, 0.34kg |
| Voice Coil Diameter | 1.3" / 33mm |
| Voice Coil Former | Aluminum |
| Diaphragm Material | Titanium |
| DC Resistance (Re) | 6.7Ω |
| MOUNTING INFORMATION | |
| Overall Diameter | 3.5", 88.9mm |
| Driver Volume Displaced | 0.009 cu.ft., 0.26 liters |
| Depth | 2.45", 62.2mm |
| Weight | 1.7 lbs, 0.8 kg |
| Mounting Thread | 1 3/8 in. 18 ext. |
| Mounting Holes Diameter | N/A |
| Mounting Holes B.C.D. | N/A |
