TENSIONE DI USCITA 4,0 MV - PESO DI LETTURA COMPRESO TRA 1,8 E 2,2 GRAMMI (CONSIGLIATO 2 GR.) - CAPACITA' DI CARICO 100-200 PF - RISP. IN FREQ. 20HZ / 22KHZ

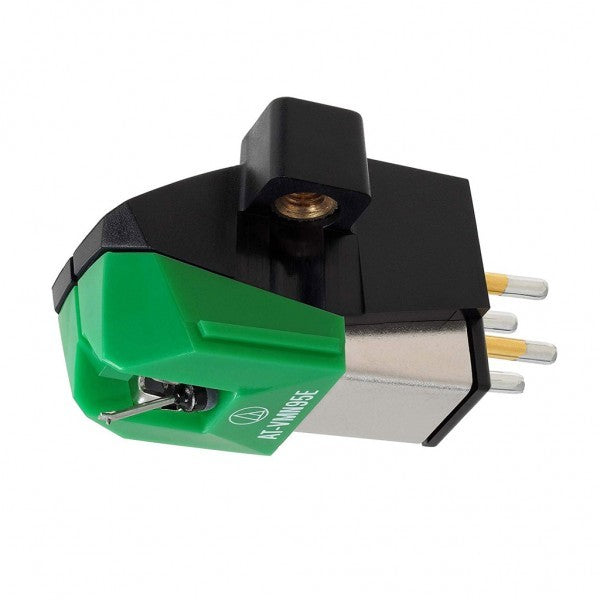

• Type: Testina magnetica MM

• Mount: Standard 1/2 inch

• Stylus shape: Elliptical Bonded mm 0,3 x 0,7

• Tracking force: g. 1,8-2,2

• Output voltage: 4,0 (mV, 1 kHz, 5 cm/sec.)

• Coil impedance: 3,3 (kΩ, 1 kHz)

• DC resistance: 485 Ω

• Frequency response: 20-22.000 Hz

• Channel separation: 20 (dB, 1 kHz)

• Output channel balance: 2,0 (dB, 1 kHz)

• Vertical tracking angle: 23°

• Recommended load impedance: 47 (kΩ)

• Coil inductance: 550 (mH, 1 kHz)

• Static compliance: 17 (x10-6 cm/dyne 100 Hz)

• Dynamic compliance: 7,0 (x10-6 cm/dyne 100 Hz)

• Cantilever: Aluminium pipe

• Stylus construction: Bonded Round Shank

• Replacement stylus: AT-VMN95E

• Dimensions: mm 17,2 x 18,9 x 28,3

• Weight: g. 6,1

• Accessories included: Set viti amagnetiche
