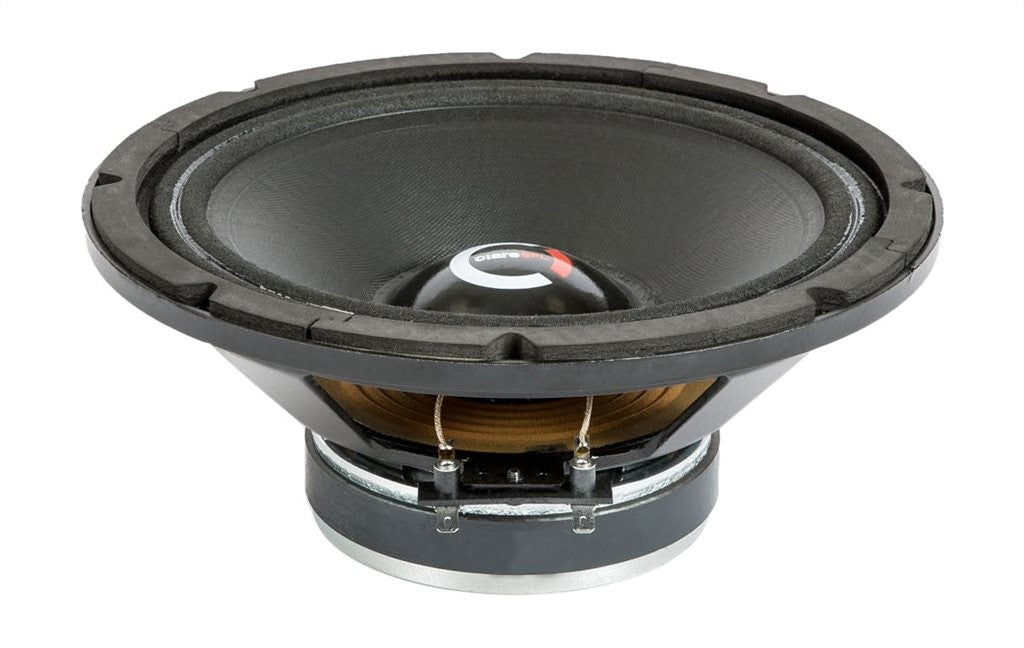

Ciare CMI250 - Woofer Car Audio SPL
Tempi di consegna 4-6 giorni
Dettagli
CIARE CMI250 Woofer - fs 55hz spl 97db CMI250 DATASHEET
Visualizza dettagli completi
Ciare CMI250 - Woofer Car Audio SPL
Specifications
Nominal Diameter
250 mm (10 in)
Nominal Power Handling
220 W
Sensitivity
97 dB
Voice Coil Diameter
50 mm (2 in)
Former Material
Glass fiber
Magnetic Gap Depth
8 mm (0.31 in)
Nominal Impedance
4 Ω
Continuous Power Handling
450 W
Frequency Range
80 - 3500 Hz
Winding Material
Copper
Winding Depth
12.5 mm (0.49 in)
Magnet Material
Ferrite
Parameters
Fs
55 Hz
Qes
0.52
Qts
0.5
Sd
356 cm² (55.18 sq²)
Xmax
4.5 mm (0.18 in)
Bl
9 Tm
d
213 mm (8.39 in)
Re
2.9 Ω
Qms
12
Vas
34 dm³ (1.2 ft³)
η0
1.2 %
Mms
42 g
Le
0.34 mH
EBP
106 Hz
Design
Surround Shape
Nomex Fabric
Recommended Enclosure
20 dm³ (0.706 ft³)
Connection Type
Fast-On
Cone Material
Doped cellulose fiber
Cone Shape
Exponential
Recommended Loading
Sealed box
Suspension
Nomex Fabric
Mounting and Shipping Info
Overall Diameter
268 mm (10.55 in)
Baffle Cutout Diameter
235 mm (9.25 in)
Flange and Gasket Thickness
13 mm (0.51 in)
Shipping Units
6 pcs
Bolt Quantity
8 pcs
Bolt Circle Diameter
253 mm (9.96 in)
Depth
111 mm (4.37 in)
Net Weight
3.45 kg (7.6 lb)
Basket Material
Aluminum
Bolt Diameter
5 mm (0.2 in)
