- Sku:
- Produttore: Scan Speak
D3004-6040-10 illuminator Beryllium
Tempi di consegna dai 4 ai 7 giorni
Dettagli
PRODOTTO DISCONTINUO. Sostituito dal modello D3004-6062-00.

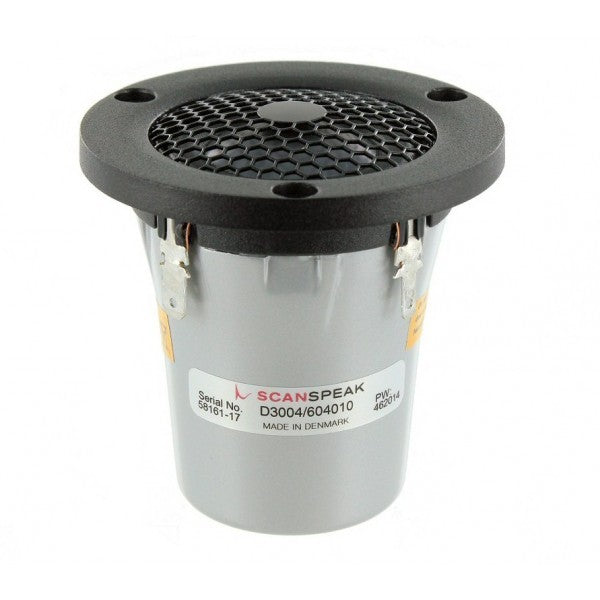

Scan Speak illuminator D3004-6040-10 Tweeter a cupolada un pollice in berillio e surround in tela trattata, flangia piccola, ampia camera posteriore , griglia di protezione, 4 ohm, fs 425hz, sensibilità 89.5db. Fascia qualitativa estrema. utilizzato nel Kit Illuminator 5
Visualizza dettagli completi
D3004-6040-10 illuminator Beryllium
The compact size is one of the key elements of these Illuminator tweeters, which provides a high degree of flexibility within design options. The small size is employed without compromising sound quality where these compact tweeters are fully comparable to the renowned full size Illuminator and Revelator tweeters, no matter if the music is played at high or low listening levels.
- 1" Textile Dome Diamphragm
- Large Roll Surround f. Wide Dispersion
- Patented Symmetrical Drive (SD-2) motor
- Sound Transparant Protective Grill
- Large Non Resonant Alu Rear Chamber
- Die Cast Housing & Face Plate
| Size: | 2.6 cm |
| Fs: | 425 Hz |
| Re: | 3 Ω |
| Qt: | 0.7 |
| Sensitivity: | 89.5 dB |
| VAS: | 0.03 ltr. |
| Sd: | 7 cm² |
| Bl: | 1.7 Tm |
