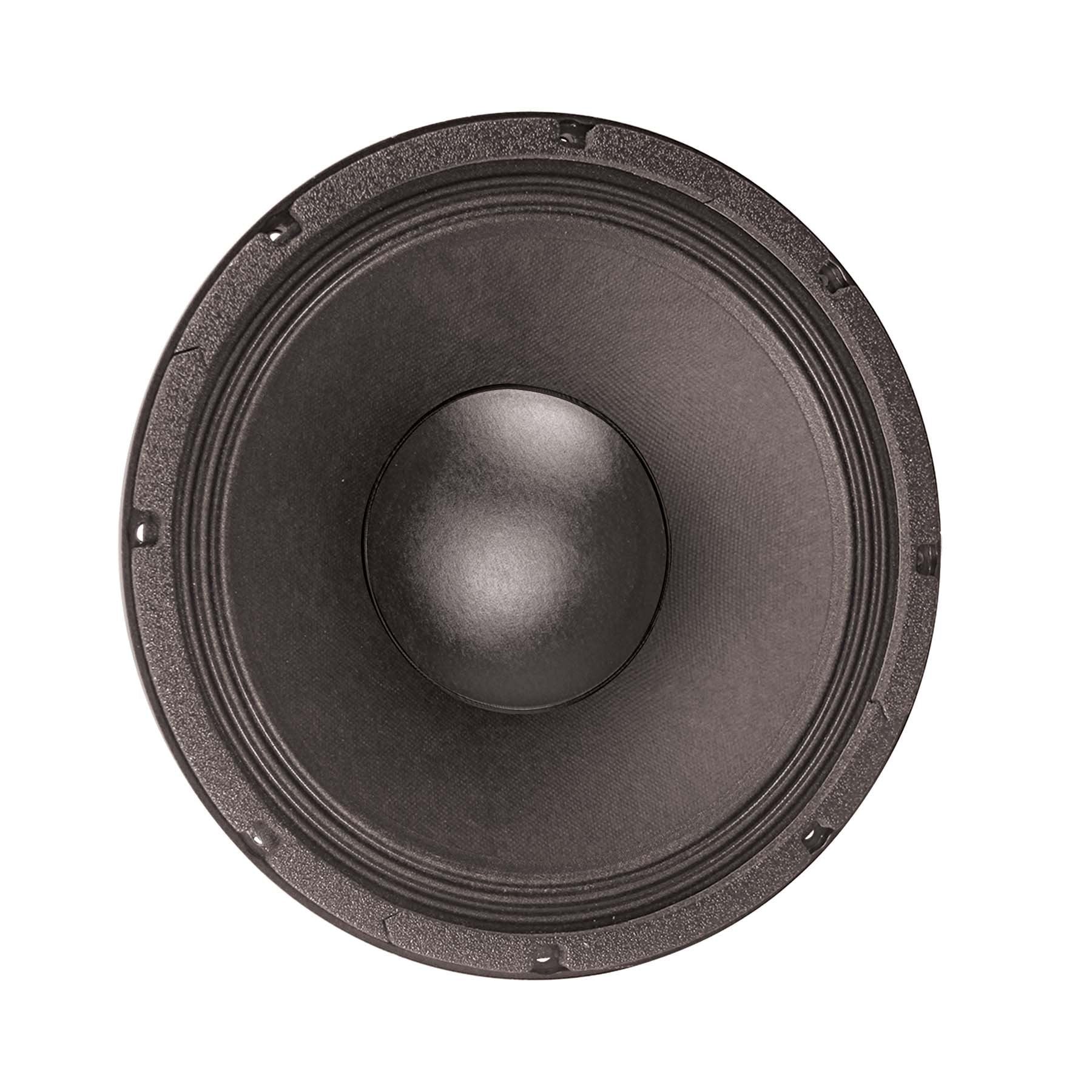

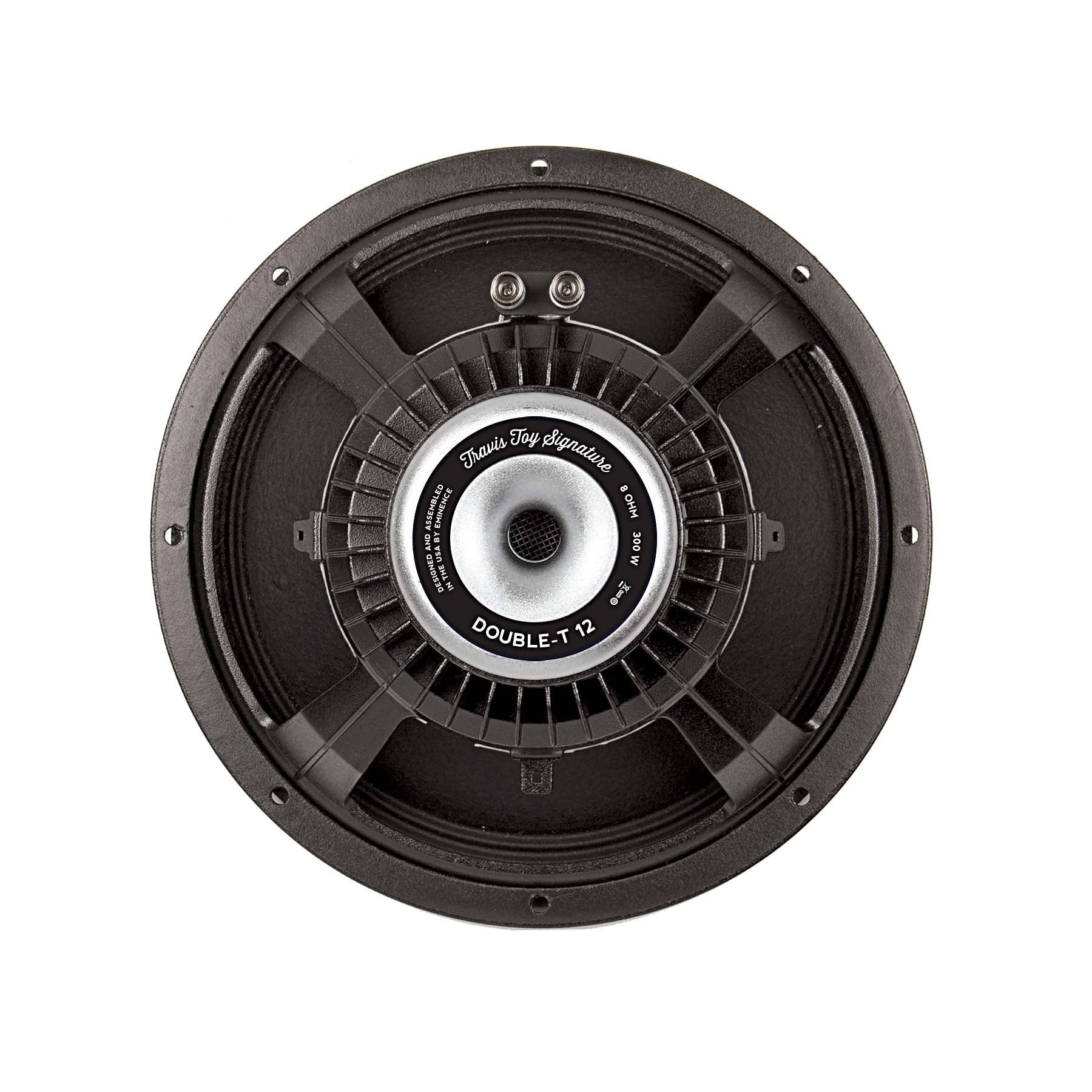

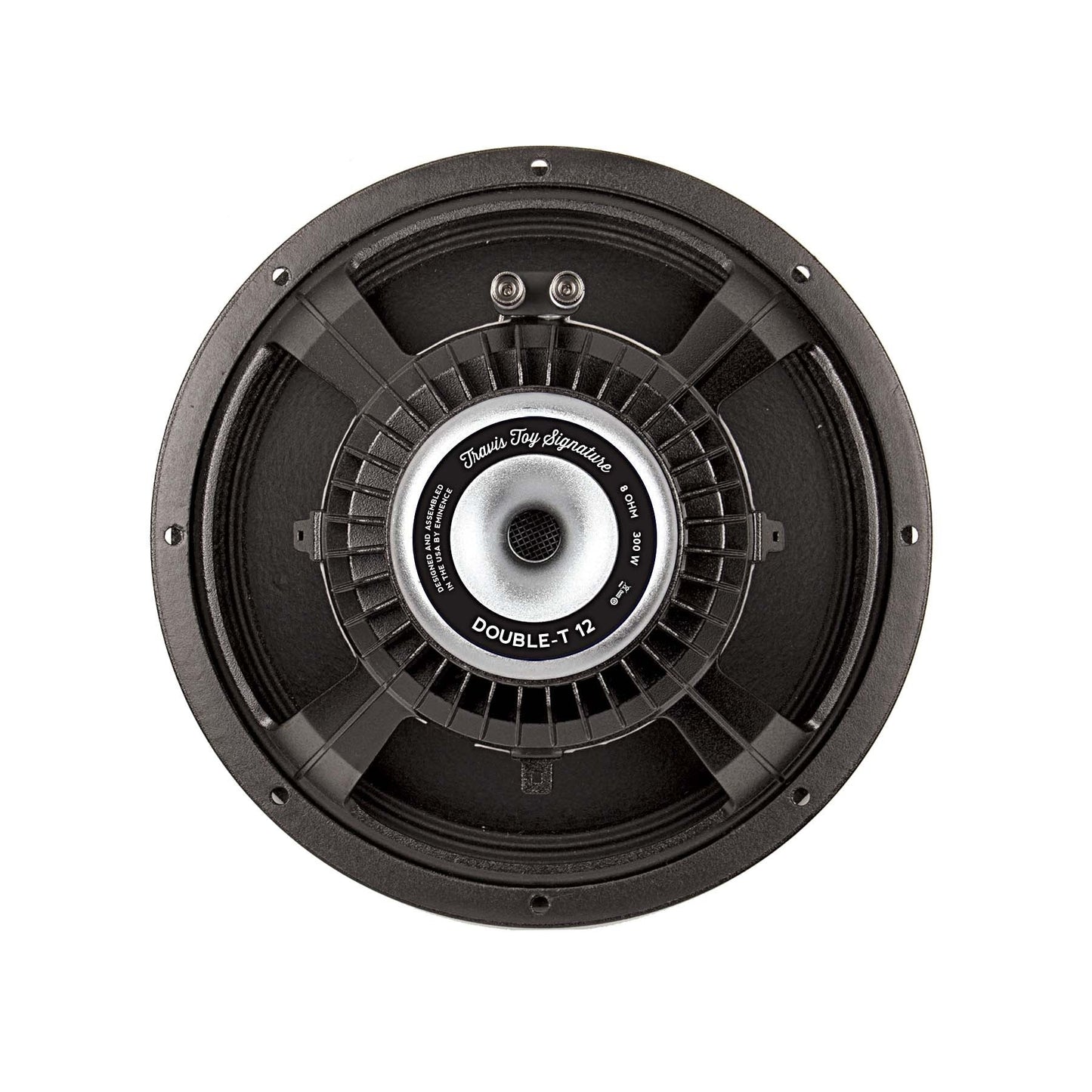

DOUBLE-T 12" - Signature Guitar speaker - 8 ohm

€268,00
Imposte incluse.
💳 Paga in 3 rate con PayPal! Seleziona PayPal al checkout e successivamente scegli "Paga in 3 rate"

Dettagli

DOUBLE-T 12"  impedenza 8 ohm, 300w massimi. Cono da 12 pollici, serie Signature, magnete neodimio, cestello Lite PRO. Disegnato Travis Toy

Altoparlante dalla tenuta in potenza massima. Pensato per suoni clean e slide guitar, per avere dei bassi veloci e aggressivi, una gamma media che buca il mix e una gamma alta dettagliata ma senza risultare tagliente e distorta. Non raggiunge mai la soglia di break up

Visualizza dettagli completi

DOUBLE-T 12" - Signature Guitar speaker - 8 ohm

€268,00

Descrizione

DOUBLE-T 12"  impedenza 8 ohm, 300w massimi. Cono da 12 pollici, serie Signature, magnete neodimio, cestello Lite PRO. Disegnato Travis Toy

Altoparlante dalla tenuta in potenza massima. Pensato per suoni clean e slide guitar, per avere dei bassi veloci e aggressivi, una gamma media che buca il mix e una gamma alta dettagliata ma senza risultare tagliente e distorta. Non raggiunge mai la soglia di break up

SPECIFICATION
Nominal Basket Diameter 12", 305 mm
Nominal Impedance* 8 Ω
Power Rating*
Program Power N/A
Watts 300 W
Resonance 53 Hz
Usable Frequency Range 50 Hz - 3.8 kHz
Sensitivity* 100.2 dB
Magnet Weight 11 oz.
Gap Height 0.36", 9.1 mm
Voice Coil Diameter 3", 76 mm
THIELE & SMALL PARAMETERS
Resonant Frequency (fs) 53 Hz
DC Resistance (Re) 5.6 Ω
Coil Inductance (Le) 0.57m H
Mechanical Q (Qms) 19.59
Electromagnetic Q (Qes) 0.3
Total Q (Qts) 0.3
Compliance Equivalent Volume (Vas) 63.69 liters / 2.25 cu.ft.
Peak Diaphragm Displacement Volume (Vd) 122.1 cc
Mechanical Compliance of Suspension (Cms) 0.17 mm/N
BL Product (BL) 18.23 T-M
Diaphragm Mass Inc. Airload (MMs) 54 grams
Efficiency Bandwidth Product (EBP) 177
Maximum Linear Excursion (Xmax) 2.35 mm
Surface Area of Cone (Sd) 519.5 cm2
Maximum Mechanical Limit (Xlim) N/A
MOUNTING INFORMATION
Recommended Enclosure Volume
Sealed Acceptable
Vented Acceptable
Driver Volume Displaced 0.09 cu.ft. / 2.54 liters
Overall Diameter 12.38", 314.5 mm
Baffle Hole Diameter 11.04", 280.4 mm
Front Sealing Gasket Yes
Rear Sealing Gasket Yes
Mounting Holes Diameter 0.28", 7.1mm
Mounting Holes B.C.D. 11.62", 295.2mm
Depth 5.63", 143 mm
Net Weight 7.1 lbs, 3.22 kg
Shipping Weight 8.7 lbs, 3.95 kgs
MATERIALS OF CONSTRUCTION
Coil Construction Copper voice coil
Coil Former Polyimide former
Magnet Composition Neodymium magnet
Core Details Vented core

Basket Materials Die-cast aluminum basket
Cone Composition Paper cone
Cone Edge Composition Cloth edge
Dust Cap Composition Paper dust cap

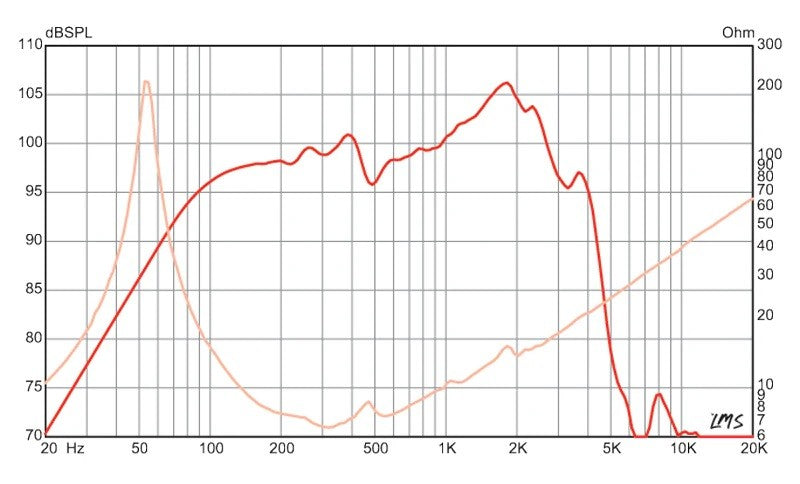

Frequency Response
response graph
