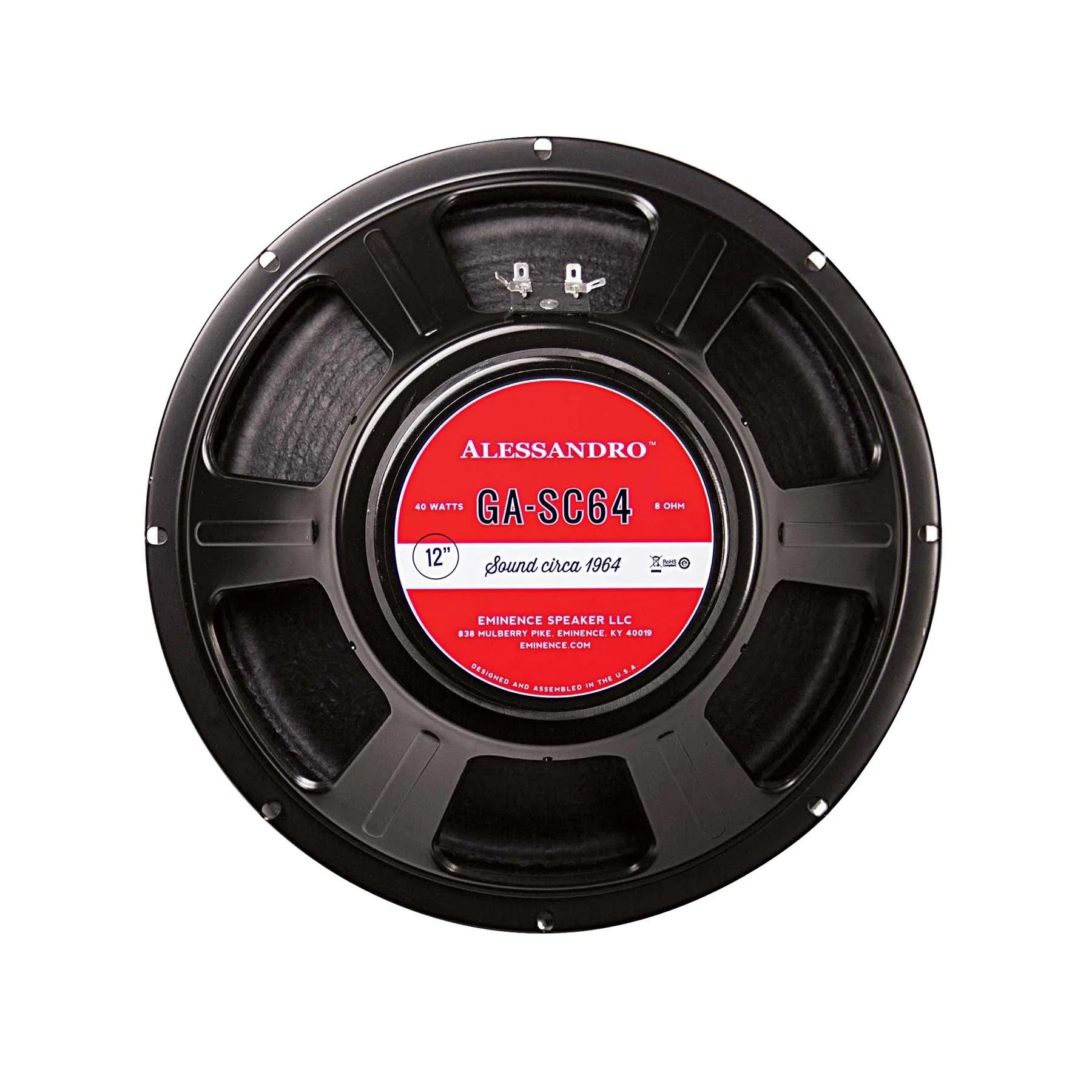

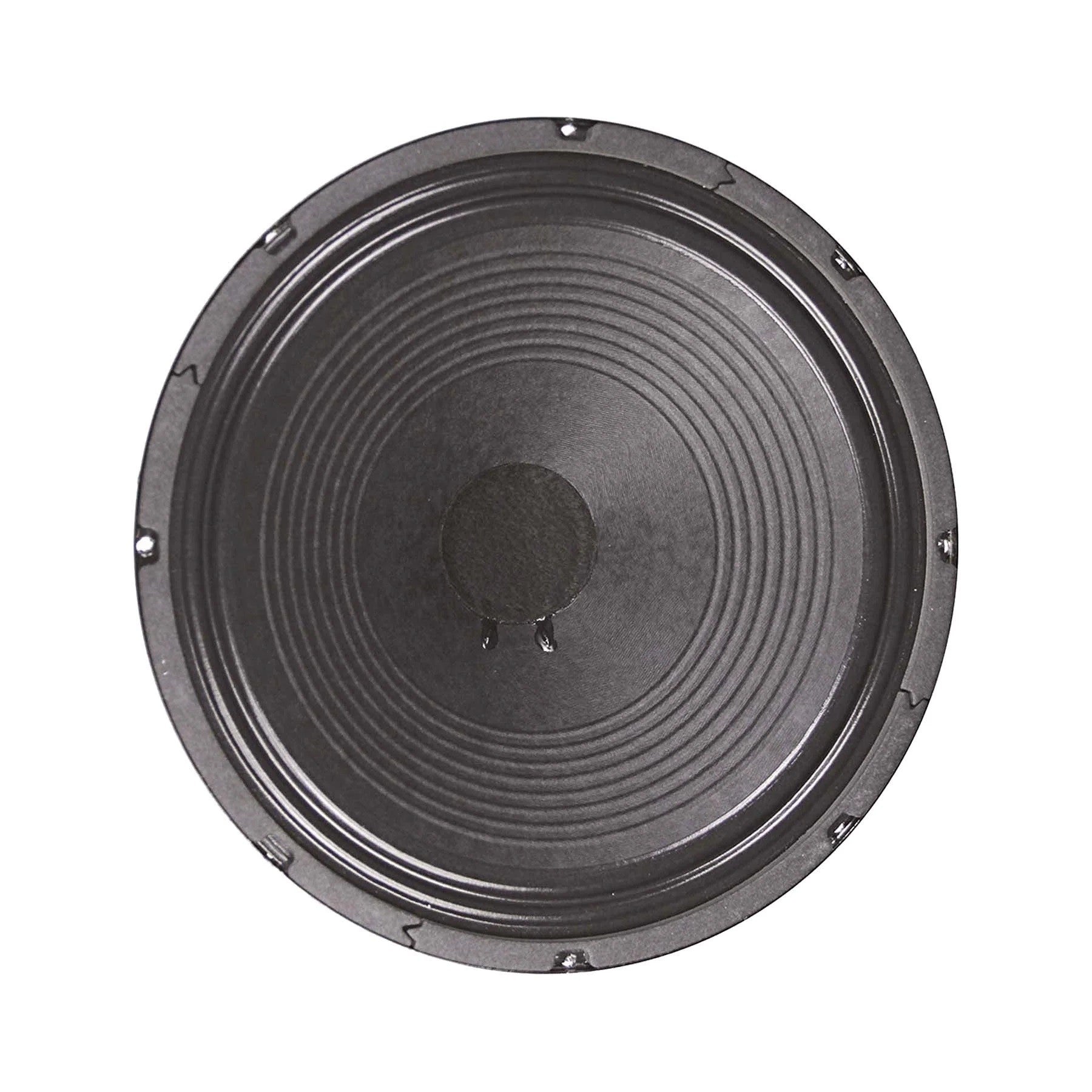

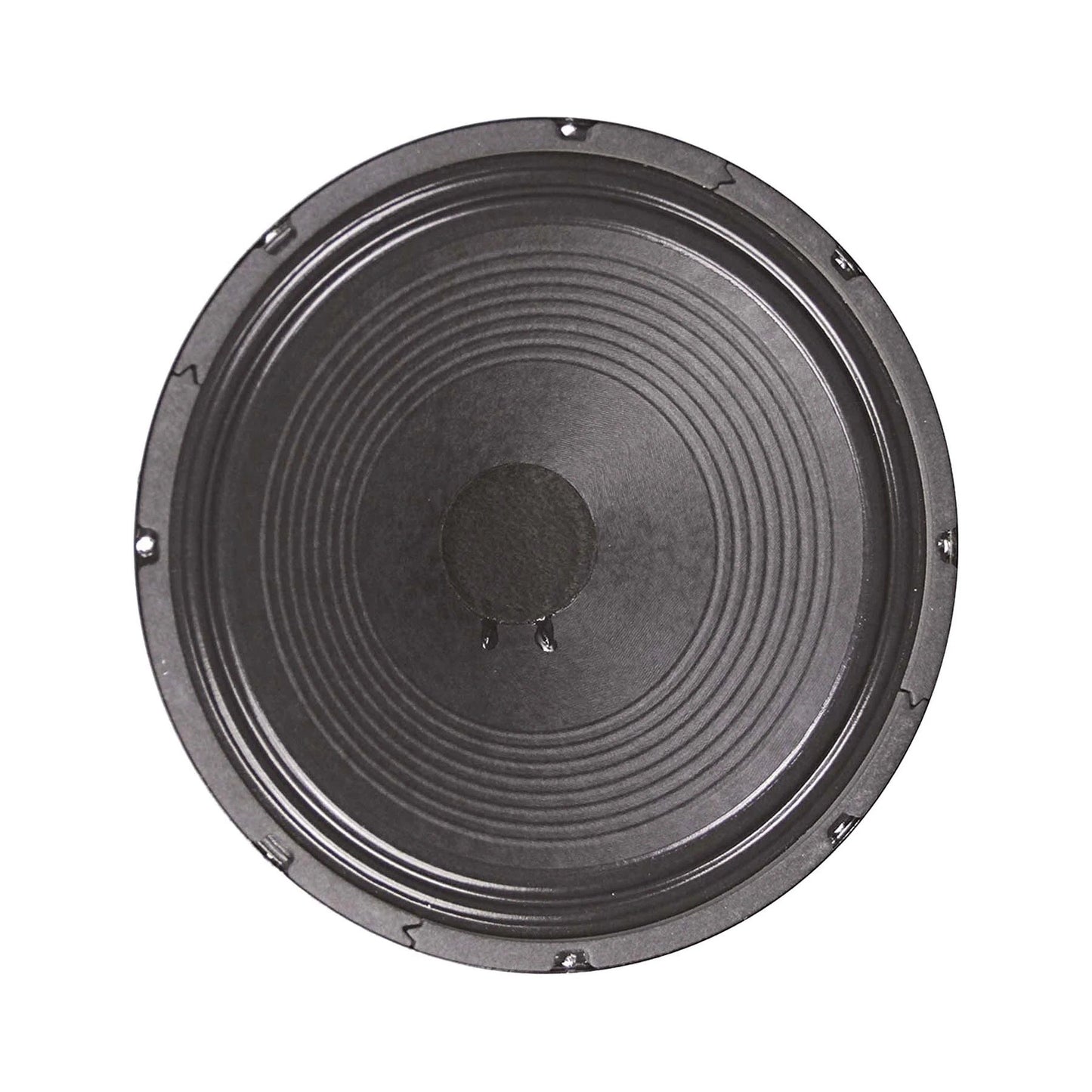

GA-SC64 - 12" Signature Guitar speaker - 8 ohm
€145,00
Imposte incluse.
Tempi di consegna dai 3 ai 4 giorni
Dettagli
GA-SC64 12" impedenza 8 ohm, 40w massimi. Cono da 12 pollici, serie Signature, cestello American standard, magnete in ferrite. Ideato dal noto costruttore di amplificatori George Alessandro
Altoparlante che ricorda toni e sonorità di metà anni '60 (1964 come suggerisce il nome), con bassi dinamici, medi caldi e alti ricchi
Dinamica bassi: moderata
Timbrica bassi: asciutta/punchy
Dinamica medi: moderata
Timbrica medi: calda
Risposta alti: moderata
Sensibilità (volume): medio alta
Visualizza dettagli completi
GA-SC64 - 12" Signature Guitar speaker - 8 ohm
€145,00
GA-SC64 12" impedenza 8 ohm, 40w massimi. Cono da 12 pollici, serie Signature, cestello American standard, magnete in ferrite. Ideato dal noto costruttore di amplificatori George Alessandro
Altoparlante che ricorda toni e sonorità di metà anni '60 (1964 come suggerisce il nome), con bassi dinamici, medi caldi e alti ricchi
| SPECIFICATION | |
| Nominal Basket Diameter | 10", 254 mm |
| Nominal Impedance* | 8 Ω |
| Power Rating* | |
| Program Power | N/A |
| Watts | 20 W |
| Resonance | 100 Hz |
| Usable Frequency Range | 100 Hz - 5.5 kHz |
| Sensitivity* | 98.2 dB |
| Magnet Weight | 15 oz. |
| Gap Height | 0.25", 6.4 mm |
| Voice Coil Diameter | 1", 25 mm |
| THIELE & SMALL PARAMETERS | |
| Resonant Frequency (fs) | 100 Hz |
| DC Resistance (Re) | 7.58 Ω |
| Coil Inductance (Le) | 0.48m H |
| Mechanical Q (Qms) | 16.89 |
| Electromagnetic Q (Qes) | 1.38 |
| Total Q (Qts) | 1.28 |
| Compliance Equivalent Volume (Vas) | 33.49 liters / 1.18 cu.ft. |
| Peak Diaphragm Displacement Volume (Vd) | 58.2 cc |
| Mechanical Compliance of Suspension (Cms) | 0.18 mm/N |
| BL Product (BL) | 7.05 T-M |
| Diaphragm Mass Inc. Airload (MMs) | 14 grams |
| Efficiency Bandwidth Product (EBP) | 72 |
| Maximum Linear Excursion (Xmax) | 1.59 mm |
| Surface Area of Cone (Sd) | 366.1 cm2 |
| Maximum Mechanical Limit (Xlim) | N/A |
| MOUNTING INFORMATION | |
| Recommended Enclosure Volume | |
| Sealed | Acceptable |
| Vented | Acceptable |
| Driver Volume Displaced | 0.027 cu.ft. / 0.77 liters |
| Overall Diameter | 10.11", 256.8 mm |
| Baffle Hole Diameter | 9.13", 231.9 mm |
| Front Sealing Gasket | Yes |
| Rear Sealing Gasket | N/A |
| Mounting Holes Diameter | 0.22", 5.6mm |
| Mounting Holes B.C.D. | 9.6", 243.8mm |
| Depth | 3.93", 99.7 mm |
| Net Weight | 3.3 lbs, 1.5 kg |
| Shipping Weight | 4.4 lbs, 2 kgs |
| MATERIALS OF CONSTRUCTION | |
| Coil Construction | Copper voice coil |
| Coil Former | Paper former |
| Magnet Composition | Ferrite magnet |
| Core Details | Non-vented core |
| Basket Materials | Pressed steel basket |
| Cone Composition | Paper cone |
| Cone Edge Composition | Paper cone edge |
| Dust Cap Composition | Solid composition felt dust cap |
