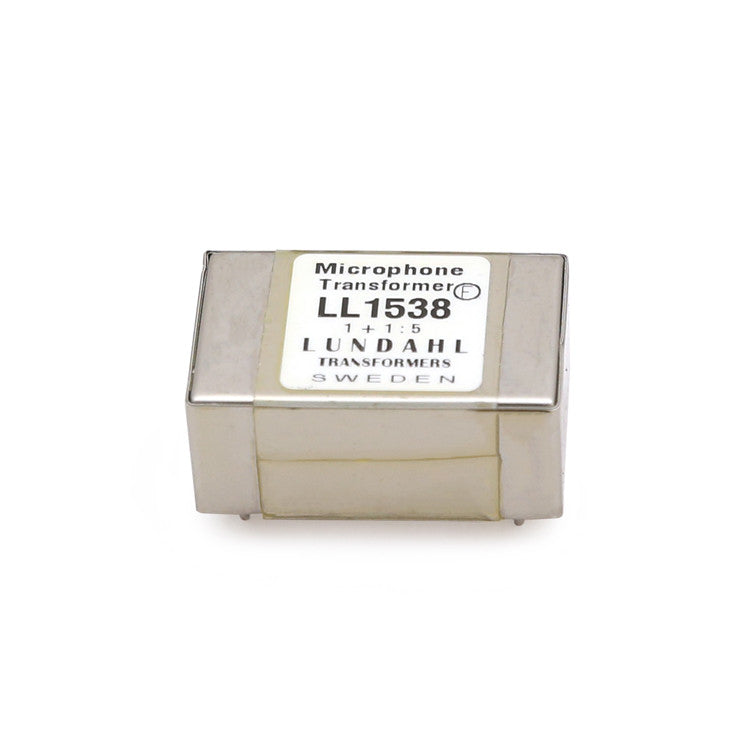

LL1538 Lundahl microphone trasformer

The LL1538 and the LL1538XL are high performance microphone input transformers, each with a high permeability mu-metal core and two three-section coils. In the LL1538XL the core is about 45% larger than in the LL1538, resulting in a larger level capability. In both types, primary and secondary windings are separated by electrostatic shields. The three-section winding structure of the transformers results in a very low leakage inductance and thus an excellent frequency response. The transformers are encapsulated in mu-metal cases for magnetic shielding.
