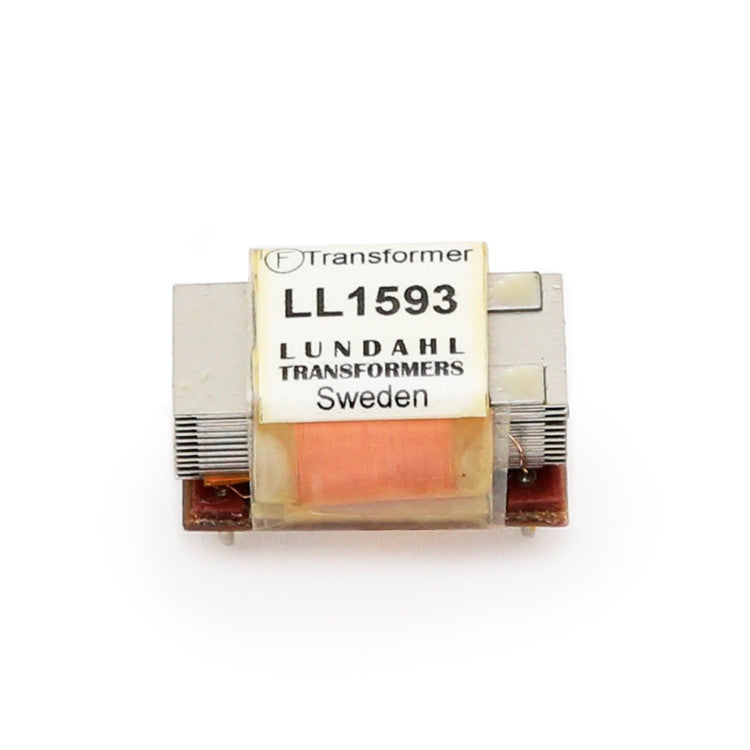

LL1593 Lundahl trasformatore d'isolamento 1+1:2 +12dBU - economico con dimensioni ottimizzate

LL1532 and LL1593 are small size medium impedance transformers suitable for splitting and other general purpose applications. LL1532 consists of two coils each with one primary and one secondary winding separated by an electrostatic (Faraday) shield. The two secondary windings are internally connected in series. The core is a high permeability mu-metal core. The LL1532 is magnetically shielded by a mu-metal housing. LL1593 is a low-cost version of the LL1532, with the same winding structure but without Faraday shields and mu-metal housing. The LL1532 and LL1592 can be used with primaries in series for 1:1 or in parallel for 1:2 turns ratio
