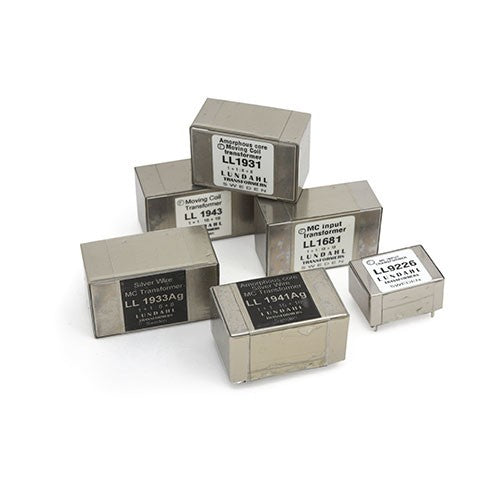

LL1678 Lundahl MC input Transformer

LL1678 Lundahl Trasformatore ingresso Moving coil (MC) nucleo in AMORFO, 10Hz - 90KHz +- 1db, Rapporto 1:8, 1:16 o 1:32 . per Testine a bassa e media impedenza, ingresso 10-25-150 ohm uscita 10K ohm Rapporto Spire 1+1+1+1 : 16+16 LxPxH mm 30x22,5x14,5 peso 28 gr, (per gli schemi di configurazione/combinazioni ed altre info vedere il data sheet)

LL1678 is an input audio transformer for moving coil pickups. The transformer is built up from two coils, each coil with one secondary winding surrounded by two primary windings. This structure results in an excellent frequency response. All winding ends are available on the pins. Thus, the transformer can be used with a set of different turn’s ratios.

The LL1678 is made with amorphous core material. As this type of core does not store energy (unlike e.g. conventional mu-metal cores) the low frequency resonance with external series capacitors is practically eliminated.
