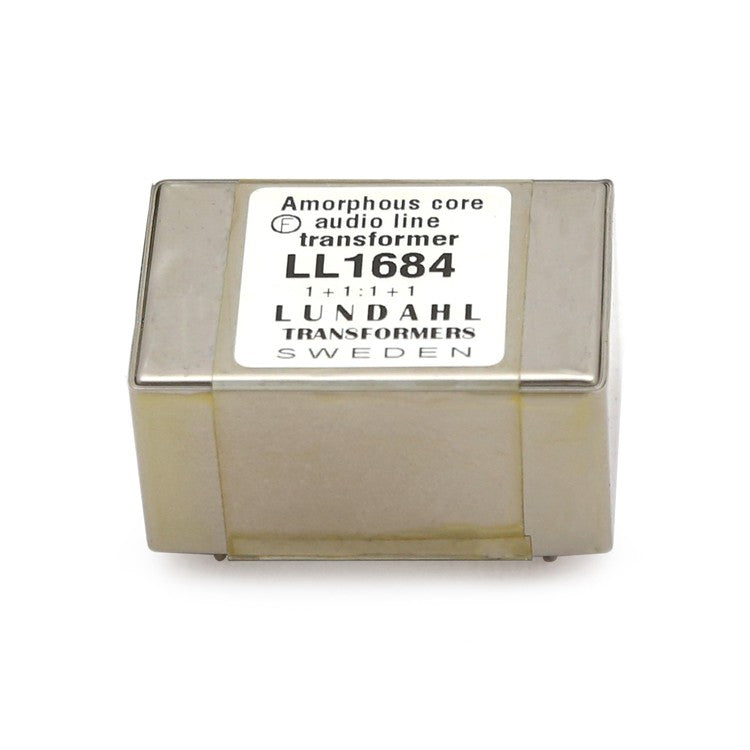

LL1684 Lundahl - Low impedance line output transformer transformer

LL1684 Lundahl - trasformatore uscita linea, adatto per accoppiamento stadi ad alti livelli di segnale e bassa impedenza. Nucleo amorfo. Info collegamenti nel datasheet

Turns ratio: 1 + 1 : 1 + 1

Dimensions (L x W x H above PCB, in mm) 42 x 28 x 22

LL1684 is a high-level, general-purpose, amorphous core transformer which can be used for microphone or line input, for line output and for galvanic isolation. The windings are arranged to give perfect symmetry if the transformer is used in phase splitting input applications. The two coils structure also greatly improves immunity to external magnetic fields from e.g. power supplies and motors. Primary and secondary windings are separated by electrostatic shields.. The transformer is housed in a mu-metal can.
