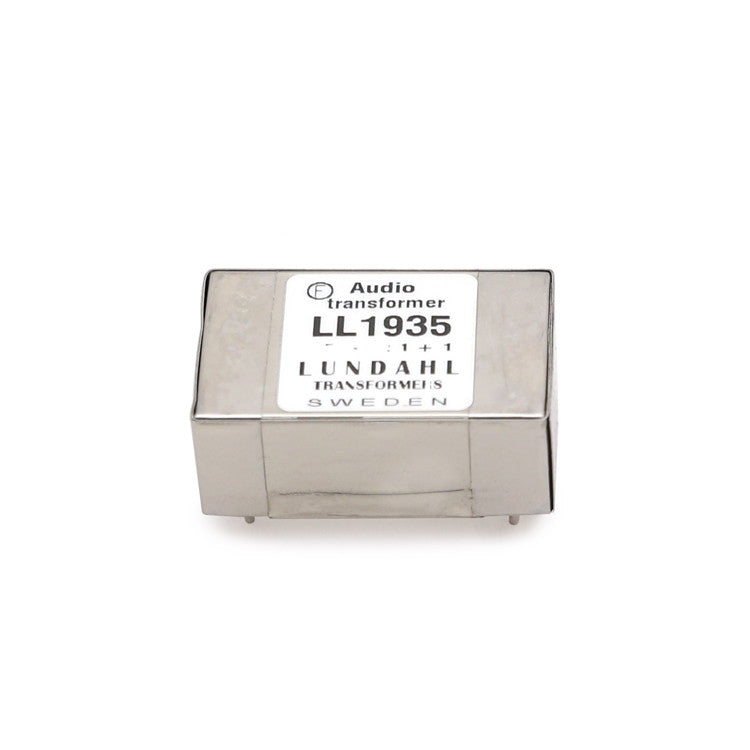

LL1935 Lundahl microphone trasformer

LL1935 is a transformer designed for DI (Direct Input) applications, matching high impedance guitar pickups to low impedance microphone preamp inputs, but is also ideal for 1:10 microphone input applications. The transformer consists of two coils, each with one primary and one secondary winding separated by an electrostatic shield, and a high permeability mu-metal core. The high impedance windings are wound using a special low capacitance winding technique. The transformer is encapsulated in a mu-metal case for magnetic shielding. For best performance, the high impedance side of the transformer (5 + 5) should be connected in series
