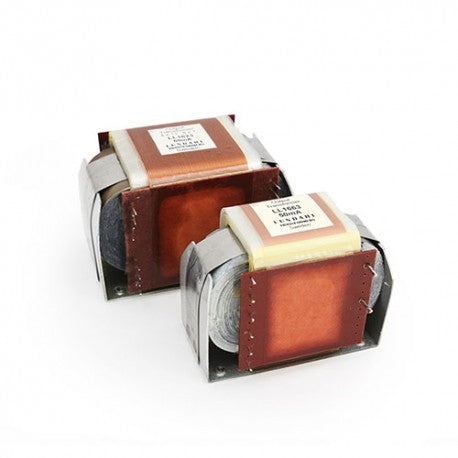

Lundahl LL1677 - alta corrente, per valvole 300B Interstage transformer

LL1677 trasformatore Interstadio alta corrente per pilotaggio 300B. SE 80mA. Rapporto 1+1+1+1 : 4+4 Specifiche nel datasheet

Type LL1677/80mA

Connection Alt A SE to SE Interst. 1 : 2

Primary DC current for 1.2 Tesla 80 mA

Primary Inductance 24 H

Suggested termination for best freq. response 22k in series with 330 pF Freq. Response (+/-1dB) @ source impedance (*)

Secondary terminated as above 23Hz - 34 kHz 1 kΩ

Max output voltage @ 30 Hz 145 V r.m.s. (410V peak-peak)

Disponibile per la Vendita in 7-15 gg ---- Available for Sale in 7-15 Days
