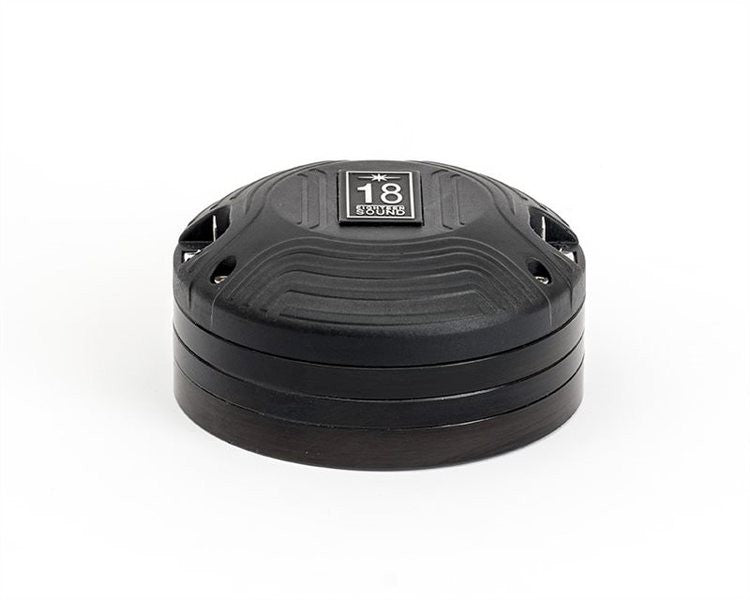

ND2T Eighteen Sound - Driver a Compressione da 1.4" 160W

Eighteen Sound ND1480A Diver a Compressione per audio professionale 160W, gola 1.4 pollici, membrana un titanio, 110dB. 8-16ohm

Features

• 110 dB SPL 1W-1m average sensitivity
• 1.4 inch exit throat
• 160W maximum program power handling
• Proprietary tangerine radial phase plug design
• Edge-wound 61mm (2.4 in) aluminum voice coil
• Pure titanium diaphragm assembly
• Neodymium ring magnetic structure
• Copper ring for reduced distortion and increased output
• Self-centering d-kit for accurate and fast servicing
• 16 Ohm version available

Technologies

• EWAL - Edge Wound Aluminum Voice Coil

Specifications

Mounting and Shipping Info

• Throat Diameter36 mm (1.4 in)
• Nominal Impedance8 Ω
• Minimum Impedance7.9 Ω
• Nominal Power Handling¹80 W
• Continuous Power Handling²160 W
• Sensitivity³110.0 dB
• Frequency Range0.8 - 20.0 kHz
• Recommended Crossover⁴1.2 kHz
• Voice Coil Diameter61 mm (2.4 in)
• Winding MaterialAluminum
• Diaphragm MaterialTitanium
• Flux Density2.0 T
• Magnet MaterialNeodymium
