- Sku: ZH02540
- Produttore: RS Speakers

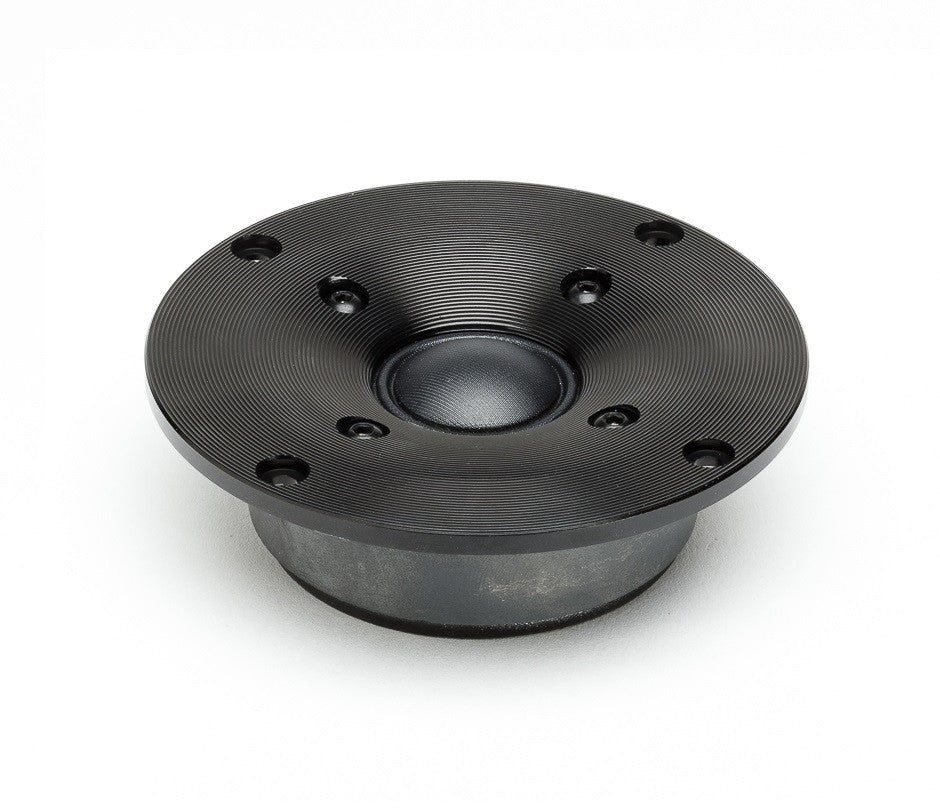

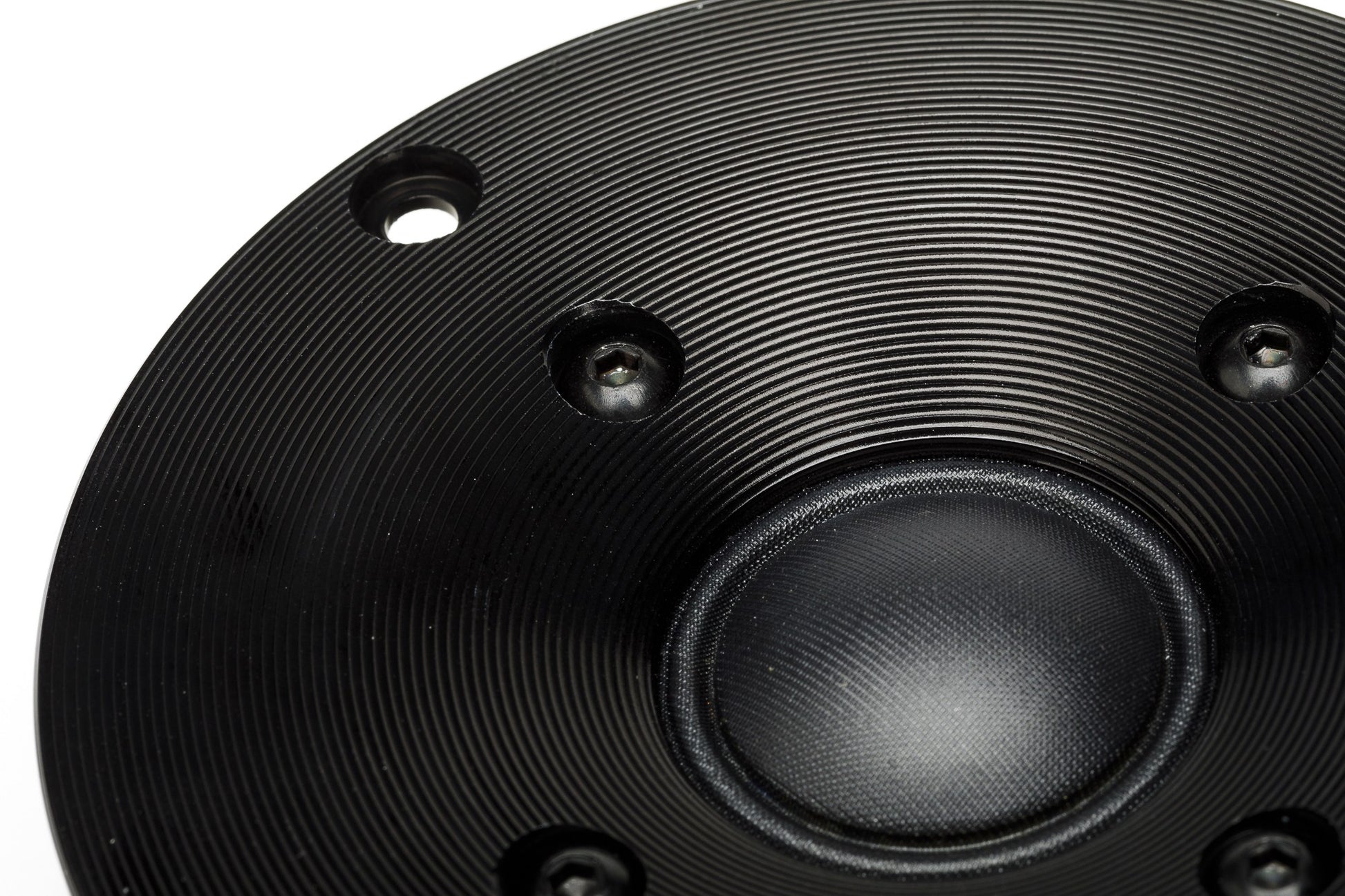

RS Speakers TW 104.25 F - Tweeter a cupola morbida - 8ohm 45W
Tempi di consegna dai 3 ai 5 giorni
Dettagli
Tweeter a cupola in seta con trattamento smorzante da 25mm e lieve sospensione, magnete in ferrite, bobina in rame. flangia in alluminio da 104mm. 8ohm, 45 watt, 91dB 1w/1m, Fs 950Hz
Visualizza dettagli completi
RS Speakers TW 104.25 F - Tweeter a cupola morbida - 8ohm 45W
Tweeter di ottimo livello e buona versatilità. Ideale per diffusori tre vie o mini diffusori
Nominal Diameter – 104 mm
Nominal Impedance – 8 Ω
Rated Power AES – 22.5 W
Continuous Program Power – 45 W
Rated Noise Power (IEC 60268-5) – 100W
Sensitivity @ 1W/1m – 91.0 dB
Voice Coil Diameter – 25 mm (1.1″)
Voice Coil Winding Depth – 1.7 mm
Magnetic Gap Depth – 2.0 mm
Flux Density – 1.70 T
Magnet Weight – 245 g
Recommended Crossover Frequency – 2.5 kHz
Thiele&Small
Re – 6.0 Ω
Fs – 950 Hz
Qms – 6.34
Qes – 1.35
Qts – 1.11
Mms – 0.3 g
Cms – 81 µm/N
Bxl – 3.02 Tm
Vas – 0.01 l
Sd – 6.6 cm2
η0 – 0.31 %
Le (1kHz) – 0.04 mH
