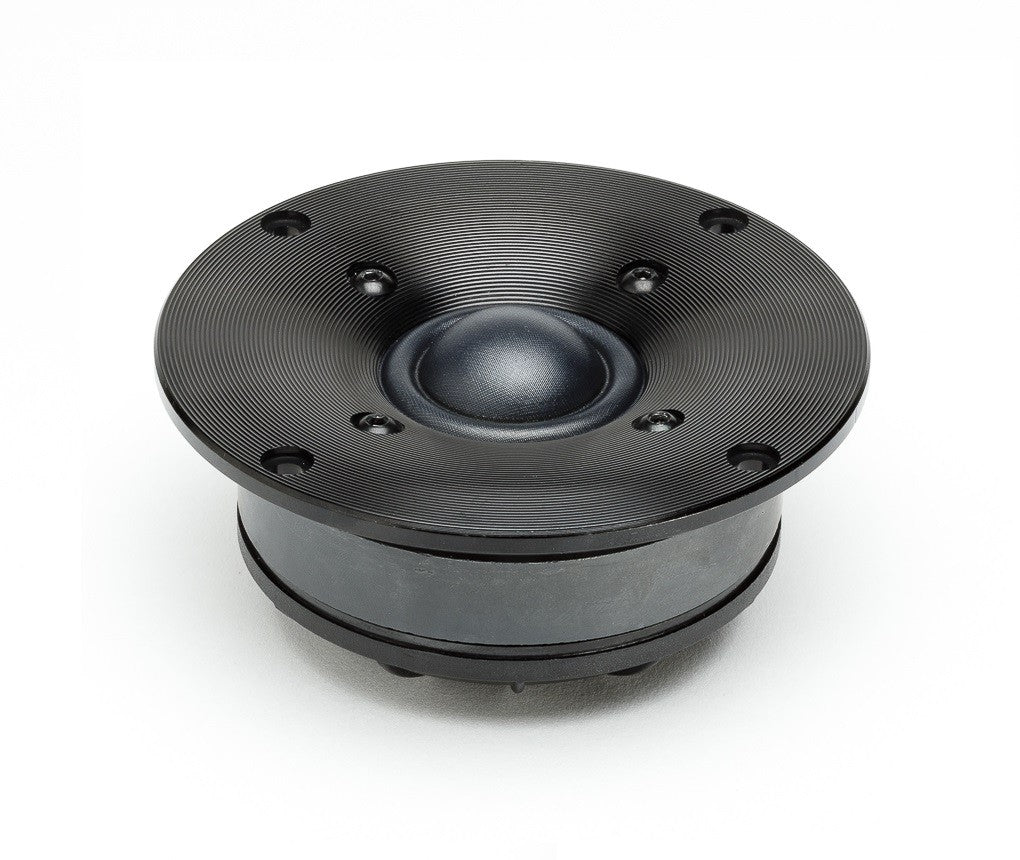

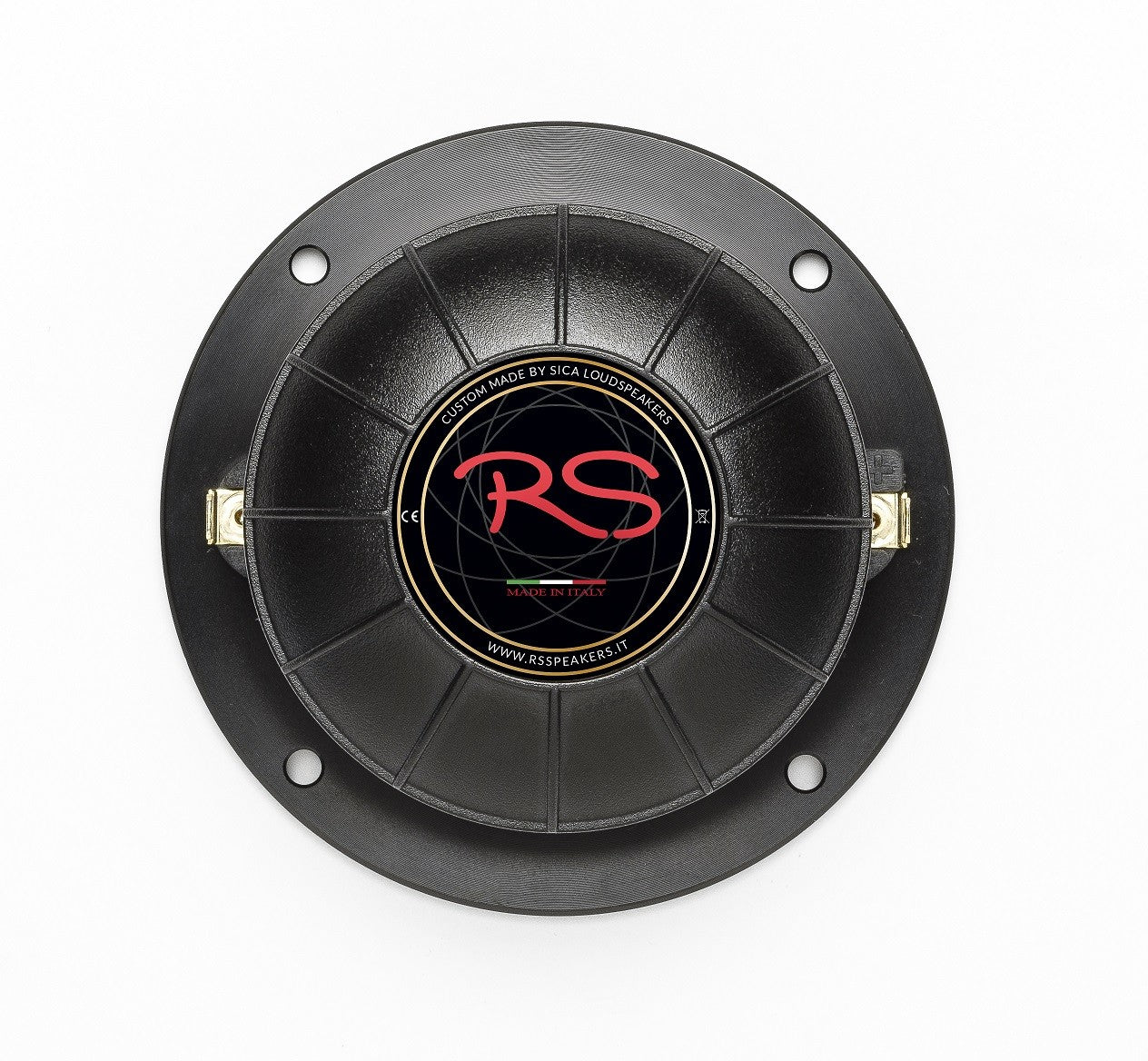

RS Speakers TW 110.28 F/Ag - Tweeter a cupola morbida - 8ohm 50W

Tweeter di alta fascia con magnete in ferrite e ampia flangia in alluminio. La camera posteriore a labirinto non solo offre una bassa frequenza di risonanza (dovuta alla cupola larga con surround) ma abbatte il picco di impedenza e rende particolarmente adatto questo altoparlante ai crossover minimali.

Nominal Diameter – 110 mm
Nominal Impedance – 8 Ω
Rated Power AES – 25 W
Continuous Program Power – 50 W
Rated Noise Power (IEC 60268-5) – 120W
Sensitivity @ 1W/1m – 90.7 dB
Voice Coil Diameter – 28 mm (1.1″)
Voice Coil Winding Depth – 2.7 mm
Magnetic Gap Depth – 3.0 mm
Flux Density – 1.27 T
Magnet Weight – 380 g
Recommended Crossover Frequency – 1.5 kHz

Thiele&Small

Re – 6.0 Ω
Fs – 700 Hz
Qms – 1.28
Qes – 0.87
Qts – 0.52
Mms – 0.5 g
Cms – 108 µm/N
Bxl – 3.82 Tm
Vas – 0.01 l
Sd – 9.1 cm2
η0 – 0.48 %
Le (1kHz) – 0.01 mH
