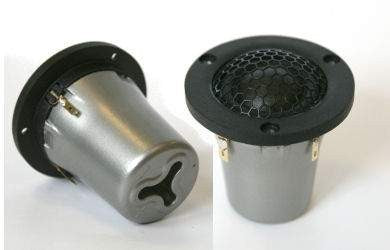

Scan Speak D3004-6020-10 illuminator

Il D3004-6020-10 è il tweeter della serie Illuminator più interessante di tutti. La flangia piccola agevola le installazioni in contesti Car Audio. La profonda camera di risonanza conferisce una Fs estremamente bassa di 425hz e permette tagli proibitivi per la stragrande maggioranza dei tweeter a flangia piccola.

The compact size is one of the key elements of these Illuminator tweeters, which provides a high degree of flexibility within design options. The small size is employed without compromising sound quality where these compact tweeters are fully comparable to the renowned full size Illuminator and Revelator tweeters, no matter if the music is played at high or low listening levels.

- 1" Textile Dome Diamphragm
- Large Roll Surround f. Wide Dispersion
- Patented Symmetrical Drive (SD-2) motor
- Sound Transparant Protective Grill
- Large Non Resonant Alu Rear Chamber
- Die Cast Housing & Face Plate

  Size:2.6 cm  Fs:425 Hz  Re:3 Ω  Qt:0.7  Sensitivity:89.5 dB  VAS:0.03 ltr.  Sd:7 cm²  Bl:1.7 Tm
