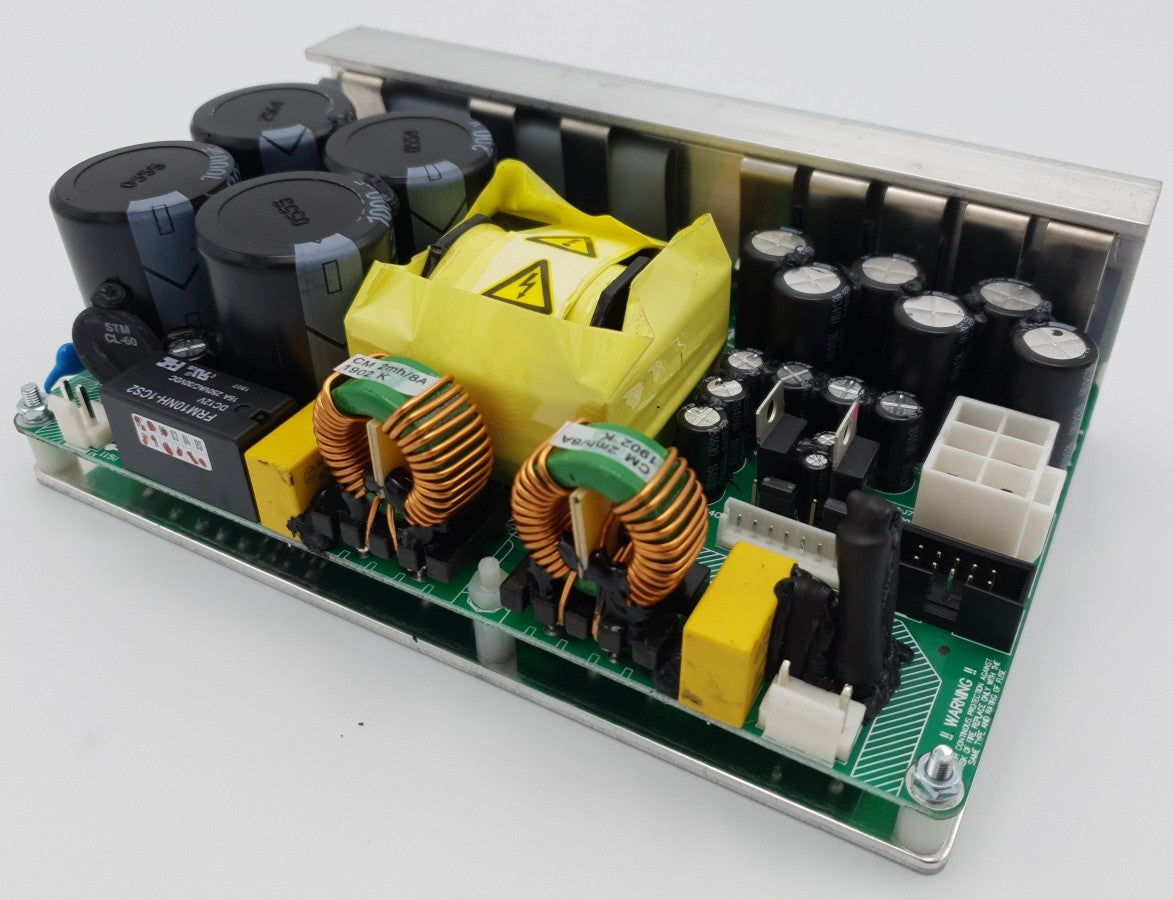

SMPS1200A180 Hypex Alimentatore 2x46V 1200W

The SMPS1200 Power Supply is a 1200W high efficiency switch mode power supply specially designed to be used in combination with our range of UcD amplifier modules.

APPLICATIONS:

• Supply for single or multiple amplifiers of the UcD™ range
• Active loudspeakers

HIGHLIGHTS:

• High efficiency
• Selectablel input voltage range
• Extremely small form factor
• Low EMIl

GENERAL FEATURES:

• Advanced over current protection
• Remote controlled operation
• Low weight
• Compact
• Fits in 1HE (additional insulation required)
• Fixed output voltage (4 versions available)

ELECTRICAL FEATURES:

• High Line Input Voltage: 190-250Vac
• Low Line Input Voltage: 95-130Vac
• Output Voltage: 2x46Vdc
• Max. Output power: 1500W
• Max. Output power: 1200W @20Hz
• Switching Frequency: 100kHz

MECHANICAL FEATURES:

• Weight: 750g
• Dimensions: 165mm x 105mm x 55mm

CONTENTS OF PACKAGING:

• SMPS1200A180
• Manual

RECOMMENDED ADDITIONAL PARTS:

• Cable set SMPS1200

RECOMMENDED AMPLIFIER COMBINATIONS:

• UcD180HG *No DC-error protection
• UcD180HG with HxR *No DC-error protection
