- Sku:
- Produttore: TangBand
W3-1876S Tang Band - Subwoofer
€52,80
Imposte incluse.
Tempi di consegna 5-7 giorni
Piccolo subwoofer da 3 pollici a lunga escursione il Tang Band W3-1876 è l'ideale per installazioni nearfield come basso di rinforzo. Il profilo, grazie anche al magnete in neodimio, è ottimizzato per agevolare lo spazio lordo della cassa. Il cono è in polipropilene e la sospensione in santoprene. L'altoparlante nel complesso è molto compatto
Product description
A true long throw subwoofer, the diminutive Tang Band W3-1876S 3" driver provides a solid bass kick to the smallest possible speaker systems.
Highlights
- Great performance within a 3 inch small subwoofer design chassis
- Patented structure design
- New material applied with injection assembly process
- Neodymium magnet motor with a long throw of Xmax and a 20 mm of voicecoil
Product details

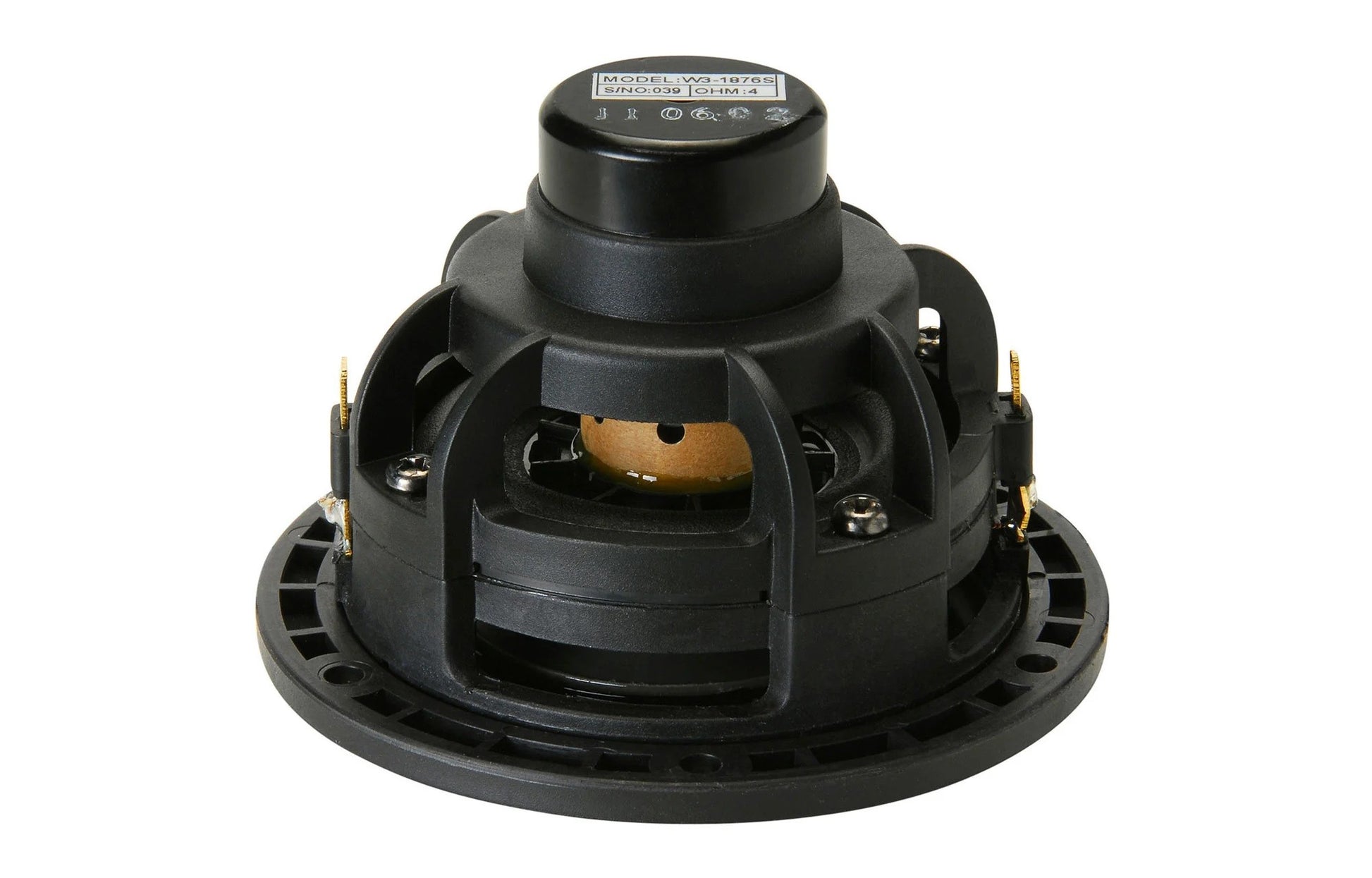

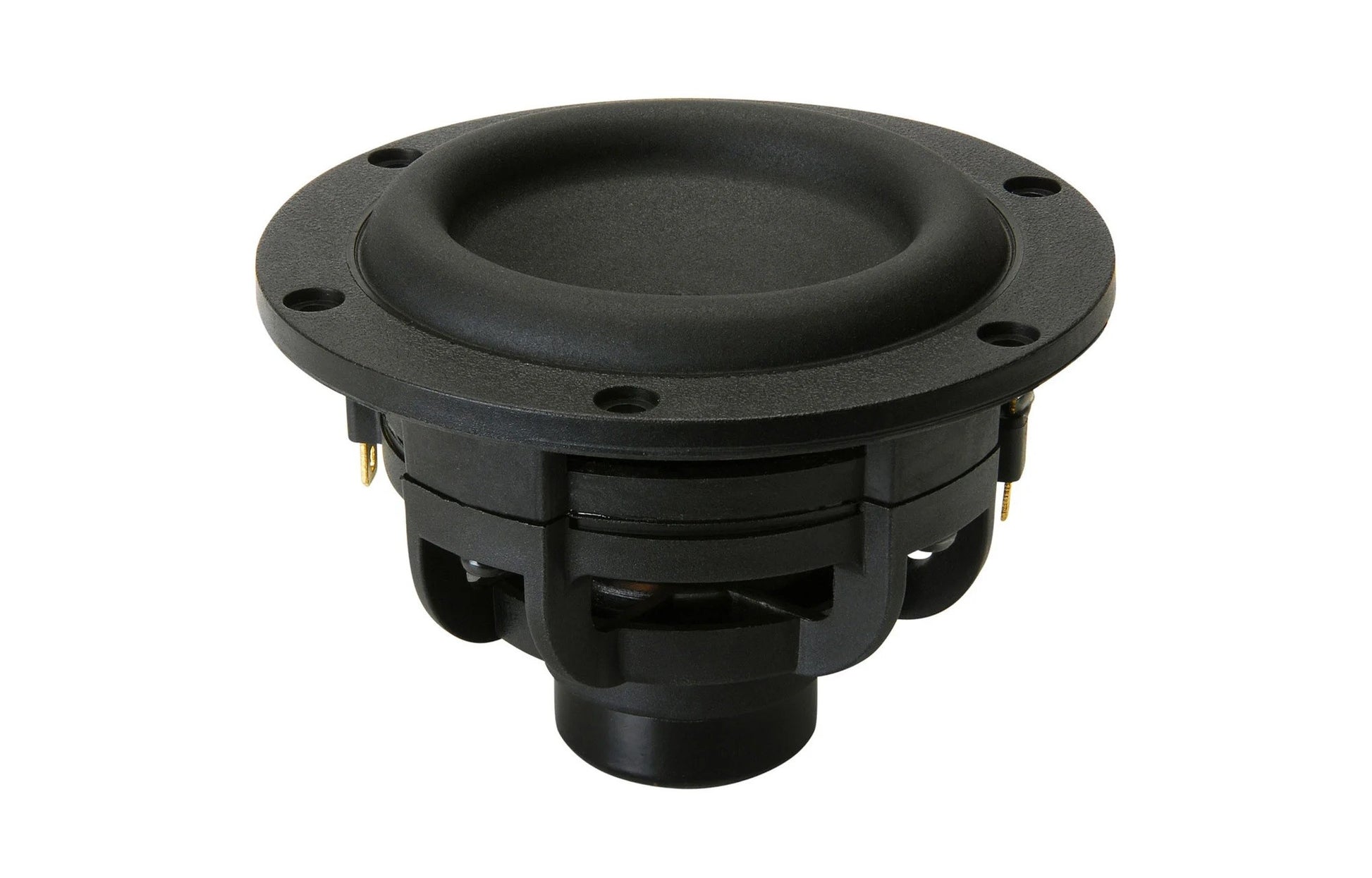

Tang Band W3-1876S 3" Mini Subwoofer
The Tang Band W3-1876S 3" subwoofer driver offers huge 5 mm Xmax capability and great sound quality in a tiny chassis. A compact yet powerful neodymium magnet system drives the 20 mm voice coil and patented injected polypropylene cone with Santoprene surround to impressively high bass output. The W3-1876S is suited for use in micro-sized home theater and multimedia audio systems.
Show less
Specifications
Article numberW3-1876S
Woofer TypeSubwoofer
Nominal Diameter3"
Power Handling (RMS)15 watts
Power Handling (max)30 watts
Impedance (Z)4 ohms
Sensitivity (SPL at 1m / 2.83V)76 dB
Frequency Response55 - 2000 Hz
Voice Coil Diameter0.8"
DC Resistance (Re)3.6 ohms
Voice Coil Inductance (Le)0.19 mH
Resonant Frequency (Fs)55 Hz
Mechanical Q (Qms)3.17
Electromagnetic Q (Qes)0.5
Total Q (Qts)0.43
Diaphragm Mass Inc. Airload (Mms)9.98 g
Mechanical Compliance of Suspension (Cms)0.74 mm/N
Surface Area of Cone (Sd)27 cm²
BL Product (BL)5.28 Tm
Compliance Equivalent Volume (Vas)0.03 ft.³
Maximum Linear Excursion (Xmax)5 mm
Cone / Diaphragm MaterialPoly
Surround MaterialSantoprene®
Magnet MaterialNeodymium
Overall Outside Diameter93.2 mm
Overall Depth65.8 mm
Baffle Cutout Diameter74.4 mm
# Mounting Holes6
Sealed Volume0.01 ft.³
Sealed F3101 Hz
Vented Volume0.03 ft.³
Vented F352 Hz
