HT050 Ciare

€17.00
VAT included
In Stock

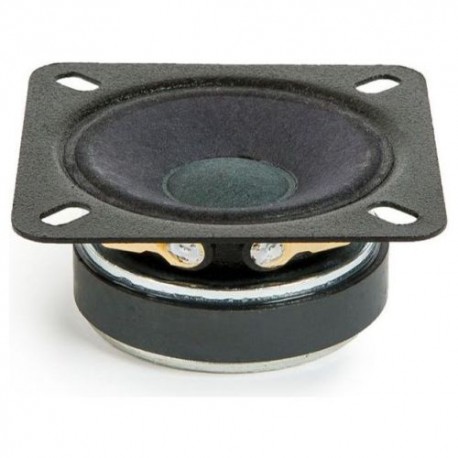

CIARE HT050 Paper Cone Tweeter. Fs 1500hz. 91db -

developed and crafted in Italy

clicca dettagli prodotto per info specifiche / click on details for further infos

Quantity

General Specifications

Musical power (W): 90
Nominal power AES (W) 35
Nominal diameter (''/mm) 2''-50mm
Nominal impedance (Ω) 8
Voice coil diameter (mm): 14
Sensitivity 1W/1m (dB) 91
Spare part code N/A

Thiele Small Parameters

Note
Re 5,4
Fs 1.500
Qms
Qes
Qts
Mms 0,35
Cms
D
Vas
BxL 2,1 Tm
Linear Mathematical Xmax
n
Le (1kHz) 0,08 mH

Materials

Basket Type N/A
Magnet Type Ferrite
Cone Material fibra di cellulosa
Suspension Material fibra di cellulosa
Spider Material
Former material Carta
Winding material
Connector type
Cone shape
Gap height 2

Applications

Applications Tweeter
Recommended Loading N/A
Loading Volume N/A
Tuning Frequency N/A
Frequency range 5 - 20 kHz

Dimension and weight

Overall diameter 58 x 58 mm
Total depth 24 mm
Flange thickness 0,8 mm
Front mount baffle cutout diameter 50 mm
N. of mounting holes 4
Mounting holes diameter (mm) 4,5 mm
Bolt circle diameter 161 mm
Gross weight 0,14 kg

Other

NPieces per masterpacking 12

Models

ModelCodeInfo
HT050 HT050

ModelCodeInfo
HT050 HT050
