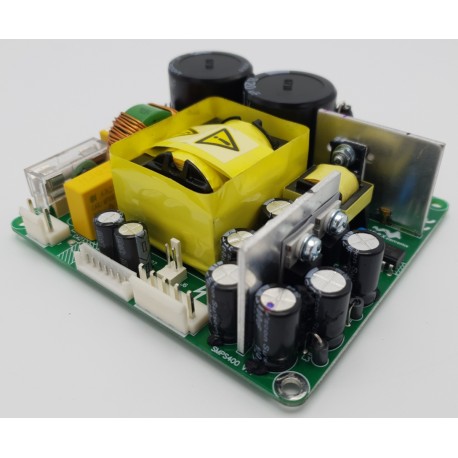

SMPS400A400 Hypex Alimentatore 2x62V 400W

117,80 €
Tasse incluse Disponibile in 3-5 giorni
HYPEX
SMPS400A400 Switching power Supp

Hypex SMPS400A400 Alimentatore Switching alta efficienza 2x62V 400W raccomandato per moduli UcD 400, incluso di cavi per collegamento

Quantità

Description

The SMPS400 Power Supply is a 400W high efficiency switch mode power supply specially designed to be used in combination with our range of UcD amplifier modules.

APPLICATIONS:

  • Supply for single or multiple amplifiers of the UcD range
  • Active loudspeakers

HIGHLIGHTS:

  • High efficiency
  • Selectable input voltage range
  • Extremely small form factor
  • Low EMI

GENERAL FEATURES:

  • Advanced over current protection
  • Remote controlled operation
  • Low weight
  • Compact
  • Fits in 1HE (additional insulation required)
  • Fixed output voltage (3 versions available)

 ELECTRICAL FEATURES:

  • High Line Input Voltage: 200-240Vac +/-10%
  • Low Line Input Voltage: 100-120Vac +/-10%
  • Output Voltage: 2x62Vdc
  • Max. Output power: 400W @20Hz
  • Switching Frequency: 100kHz

MECHANICAL FEATURES:

  • Weight: 750g
  • Dimensions: 165mm x 105mm x 55mm

CONTENTS OF PACKAGING:

  • SMPS400A400 with mounted spacers
  • Manual

RECOMMENDED ADDITIONAL PARTS:

  • Cable set SMPS400

RECOMMENDED AMPLIFIER COMBINATIONS:

  • UcD400HG
  • UcD400HG with HxR

Specs

Mains voltage input 230V / 115V
Automatic input voltage selection No, Selectable with jumper
SMPS Voltage +/- 2x62Vdc
Max: Output power 600W
Max: Output power @ 20Hz 400W
Dimensions mm 105*100*42(37)
Weight 300g
HYPEX
SMPS400A400 Switching power Supp

Scheda dati

note
Disponibile per la Vendita in 5-15 gg ---- Available for Sale in 5-15 Days
