SMPS1200A400 Hypex Alimentatore 2x63V 1200W

243,00 €
Tasse incluse Disponibile in 3-5 giorni
HYPEX
SMPS1200A400 Switchink power Sup

Hypex Alimentatore Switching alta efficienza 2x63 1200W raccomandato per moduli UcD 400, incluso di cavi per collegamento

Quantità

Description

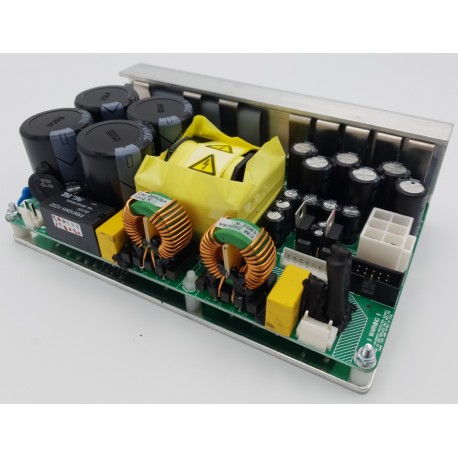

The SMPS1200 Power Supply is a 1200W high efficiency switch mode power supply specially designed to be used in combination with our range of UcD and Ncore amplifier modules.

APPLICATIONS:

  • Supply for single or multiple amplifiers of the UcD and NCore range
  • Active loudspeakers

HIGHLIGHTS:

  • High efficiency
  • Selectablel input voltage range
  • Extremely small form factor
  • Low EMI

GENERAL FEATURES:

  • Advanced over current protection
  • Remote controlled operation
  • Low weight
  • Compact
  • Fits in 1HE (additional insulation required)
  • Fixed output voltage (4 versions available)

ELECTRICAL FEATURES:

  • High Line Input Voltage: 200-240Vac +10%
  • Low Line Input Voltage: 100-120Vac +10%
  • Output Voltage: 2x63Vdc
  • Max. Output power: 1500W
  • Max. Output power: 1200W @20Hz
  • Switching Frequency: 100kHz

MECHANICAL FEATURES:

  • Weight: 750g
  • Dimensions: 165mm x 105mm x 55mm

CONTENTS OF PACKAGING:

  • SMPS1200A400
  • Manual

RECOMMENDED ADDITIONAL PARTS:

  • Cable set SMPS1200

RECOMMENDED AMPLIFIER COMBINATIONS:

  • UcD400HG *No DC-error protection
  • UcD400HG with HxR *No DC-error protection
  • NC400

Specs

Mains voltage input 230V / 115V
Automatic input voltage selection No, Selectable with jumper
SMPS Voltage +/- 2x64Vdc
Max: Output power 1500W
Max: Output power @ 20Hz 1200W
Dimensions mm 165*105*55
Weight 750g
