SMPS1200A700 Hypex Alimentatore 2x85V 1200W

243,00 €
Tasse incluse Disponibile in 3-5 giorni
HYPEX
SMPS1200A700 Switching Power Sup

Hypex SMPS1200A700 Alimentatore Switching alta efficienza 2x85V 1200W raccomandato per moduli UcD 700, incluso di cavi per collegamento

Quantità

Description

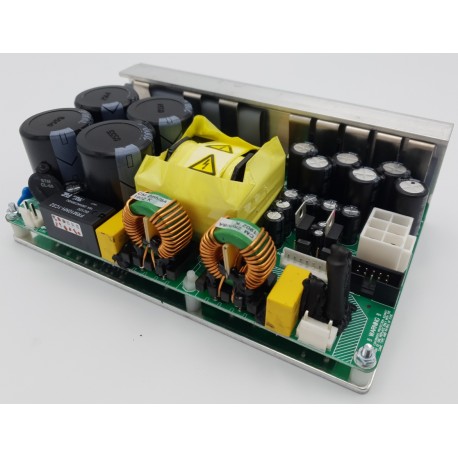

The SMPS1200 Power Supply is a 1200W high efficiency switch mode power supply specially designed to be used in combination with our range of UcD amplifier modules.

APPLICATIONS:

  • Supply for single or multiple amplifiers of the UcD and NCore range
  • Active loudspeakers

HIGHLIGHTS:

  • High efficiency
  • Selectablel input voltage range
  • Extremely small form factor
  • Low EMI

GENERAL FEATURES:

  • Advanced over current protection
  • Remote controlled operation
  • Low weight
  • Compact
  • Fits in 1HE (additional insulation required)
  • Fixed output voltage (4 versions available)

ELECTRICAL FEATURES:

  • High Line Input Voltage: 200-240Vac +10%
  • Low Line Input Voltage: 100-120Vac +10%
  • Output Voltage: 2x85Vdc
  • Max. Output power: 1500W
  • Max. Output power: 1200W @20Hz
  • Switching Frequency: 100kHz

MECHANICAL FEATURES:

  • Weight: 750g
  • Dimensions: 165mm x 105mm x 55mm

CONTENTS OF PACKAGING:

  • SMPS1200A700
  • Manual

RECOMMENDED ADDITIONAL PARTS:

  • Cable set SMPS1200

RECOMMENDED AMPLIFIER COMBINATIONS:

  • UcD700HG with HxR

Specs

Mains voltage input 230V / 115V
Automatic input voltage selection No, Selectable with jumper
SMPS Voltage +/- 2x64Vdc (A400) 2x85Vdc (A700)
Max: Output power 1500W
Max: Output power @ 20Hz 1200W
Dimensions mm 165*105*55
Weight 750g
