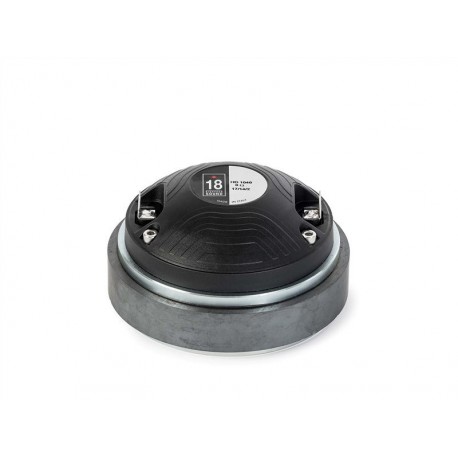

HD1040 Eighteen Sound - Driver a Compressione 80W

HD1040 Eighteen Sound - Driver a Compressione da 1" 80W

110,92 €
Tasse incluse Tempi di consegna dai 3 ai 4 giorni
Tempi di consegna dai 3 ai 4 giorni
Eighteensound

Eighteen Sound HD1040 Diver a Compressione per audio professionale 80W, gola 1 pollice, membrana un polietilene, 107dB. 8ohm

Quantità

Eighteen Sound HD1040 Diver a Compressione per audio professionale 80W, gola 1 pollice, membrana un polietilene, 107dB. 8ohm

16_07_42_352_fmbok2er

Features

  • 1 inch exit throat
  • 107 dB SPL 1W / 1m average sensitivity
  • 44mm (1 3/4 inch) voice coil diameter
  • 80 Watt program power handling
  • Treated polyethylene diaphragm
  • Proprietary phase plug design
  • 16ohm version available

Technologies

The HD1040 one inch exit high frequency compression driver has been designed for use in high quality audio systems. Equipped with proprietary Phase Plug architecture, the HD1040 has been designed to give high level manufacturing consistency and smooth coherent wave front at the horn entrance across the whole working frequency range. The phase plug with its short openings and high flare rate value assures low distortion and demonstrates remarkable improvements in mid-high frequency reproduction. The HD1040 diaphragm assembly is made by proprietary treated Polyethylene material. Thanks to its superior diaphragm dimensional stability (160°C), the polyethilene shows constant behaviour during its whole working life. Moreover, this particular material with its very high value of elasticity modulus, (50% more than standard Mylar and 100% more than polyimide film) is capable of superior transient and intermodulation distortion response. The flat suspension shape is designed to maintain low stiffness and low mid band distortion and response. An edge-wound aluminum voice coil wound on proprietary treated Nomex completes the diaphragm assembly. Thanks to its physical properties, the proprietary treated Nomex former shows a 30% higher value of tensile elongation at a working operative temperature, (200°C) when compared to Kapton. This feature enables proper energy transfer control from the voice coil to the dome in real working conditions. Moreover, this proprietary former material is suitable for use in damp and wet environments. The HD1040 powerful ceramic magnet assembly has been designed to obtain 16 KGauss in the gap within a compact ferrite motor structure.

Specifications

Mounting and Shipping Info

  • Throat Diameter25 mm (1.0 in)
  • Nominal Impedance8 Ω
  • Minimum Impedance7.0 Ω
  • Nominal Power Handling140 W
  • Continuous Power Handling280 W
  • Sensitivity3107.0 dB
  • Frequency Range1.6 - 20.0 kHz
  • Recommended Crossover41.6 kHz
  • Voice Coil Diameter44 mm (1.75 in)
  • Winding MaterialAluminum
  • Diaphragm MaterialTreated polyethylene
  • Flux Density1.6 T
  • Magnet MaterialFerrite
