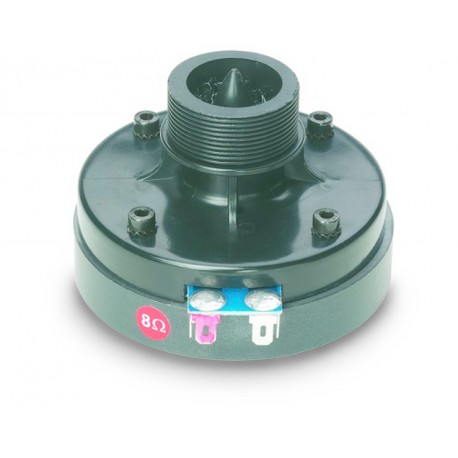

HD110 Eighteen Sound - Driver a Compressione 40W

HD110 Eighteen Sound - Driver a Compressione da 1" 40W

44,00 €
Tasse incluse Tempi di consegna dai 3 ai 4 giorni
Tempi di consegna dai 3 ai 4 giorni
Eighteensound

Eighteen Sound HD110 Diver a Compressione per audio professionale 40W, gola 1 pollice, membrana un cotone trattato, 109dB. 8ohm

Quantità

Eighteen Sound HD110 Diver a Compressione per audio professionale 40W, gola 1 pollice, membrana un cotone trattato, 109dB. 8ohm

23_04_27_661_173_3e86a

Features

  • 109dB SPL 1W/1m average sensitivity
  • 1inch exit on 1 3/8” screw-in type
  • 1 inch voice coil diameter
  • 40 W program power handling
  • Rugged phenolic diaphragm
  • Usable in two way or multi-way system

Technologies

The HD110 is a HF unit suitable for compact size two and three way lightweight systems. It will deliver an unmatched combination of extended linear frequency response and very high efficiency. With a throat exit of 1 inch, the HD110 is developed to match all 1-3/8” screw-in type horns.
The phenolic diaphragm assembly, with its 1 inch edge-wound aluminum voice coil, is capable to handle up to 40W continuous program power for temperature range up to 250°C.
Computer Aided Finite Element Analysis and extensive testing were used to obtain phase plug shape made in high pressure injectionmolded polypropylene foam, designed to assuring maximum strength. Final result is a smooth coherent wavefront in the horn entrance, high thermal stability and manufacturing consistency.
The HD110 compact size and lightweight ceramic magnet assembly is designed to obtain 16KGauss in the gap.

Specifications

Mounting and Shipping Info

  • Throat Diameter25 mm (1.0 in)
  • Nominal Impedance8 Ω
  • Minimum Impedance7.0 Ω
  • Nominal Power Handling120 W
  • Continuous Power Handling240 W
  • Sensitivity3109.0 dB
  • Frequency Range2.0 - 20.0 kHz
  • Recommended Crossover42.5 kHz
  • Voice Coil Diameter25 mm (1.0 in)
  • Winding MaterialAluminum
  • Diaphragm MaterialCloth
  • Magnet MaterialFerrite
